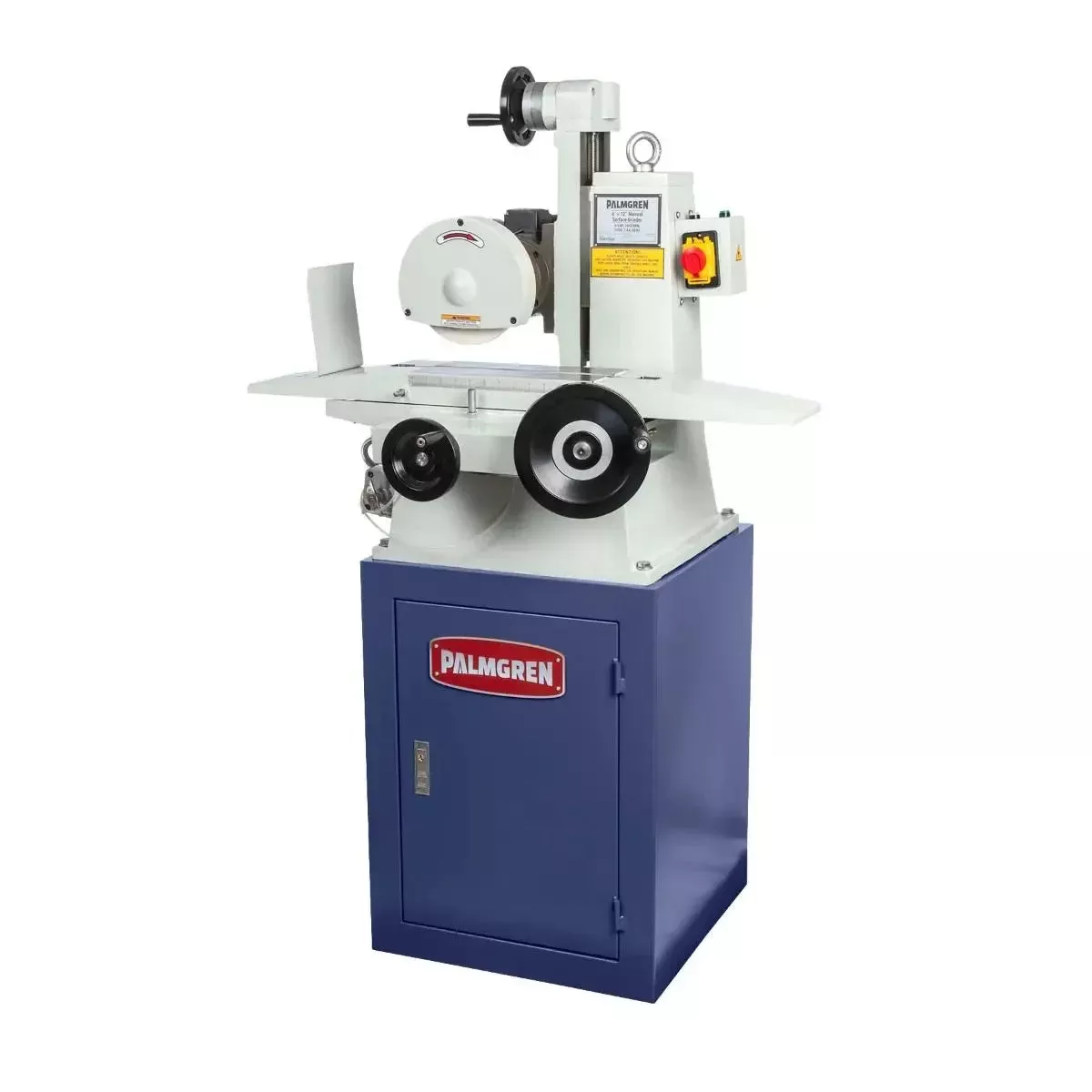

This economical 6” x 12” manual surface grinder has many features found on larger units and is a perfect choice for small shops, tool rooms and maintenance shops when close tolerances are needed.
Bring mirror-like finishes to your metalworking projects with this professional grinder.
- Meehanite cast iron construction- stress relieved to minimize vibration while maintaining rigidity and accuracy
- Rack and pinion mechanism with dove tail ways
- Hand scraped ways
- Spindle and motor are a direct drive design and are dynamically balanced minimum vibration
- Swarf guard
- Large easy to read dials
- Spiral bevel gear for easy vertical movement of the spindle head
- Steel Floor Stand Included
- Optional accessory – Permanent Magnetic Chuck
| Abrasive Finishing Type | Bench Grinders and Buffers |
| Bench Grinder and Buffer Drive | Single Speed |
| Country of Origin | CN |
| Cross Feed Motor | 0.001″ |
| Max. Grinding Length | 12-1/2″ |
| Max. Grinding Width | 6-11/16″ |
| Motor HP | 3/4 |
| Optional Accessories | Item 9670109 Heavy duty steel floor standItem 9682130 Permanent magnetic chuck |
| Phase | Single |
| RPM | 3600 |
| Table Dimensions | 6″ x 12″ |
| T-Slot Size/Distance/Quantity | 1/2″ |
| Vertical Feed Graduation | 0.0005″ |
| Voltage | 115 |
| Table to Center of Spindle | 11 |
| Wheel Size (Dia x W x Bore) | 7″ x 1/2″ x 1-1/4″ |
| UPC | 726896821221 |
| Unit of Measure | Each |
| Product Height (in) | 38.38 |
| Product Length (in) | 2.38 |
| Product Width (in) | 2.38 |
| Product Weight (lbs) | 710 |
