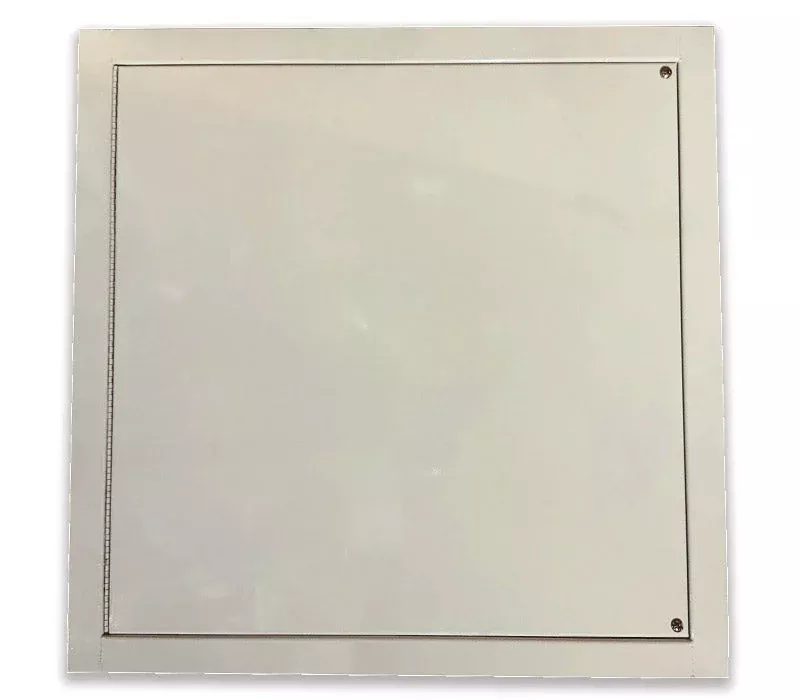

The KAWT Series Air & Watertight Access Door is a durable, flush access panel designed for wall and ceiling installations where both air infiltration and water penetration must be prevented.
Constructed from heavy-duty 16-gauge steel, this door features a five-stage iron phosphate coating and a white baked enamel finish that can be painted to match surrounding surfaces. It is ideal for clean rooms, hospitals, laboratories, operating rooms, pharmaceutical facilities, and other environments that require an airtight and watertight seal.
Resources
Download Spec Sheet
Specifications
| Door SizeH × W (in.) | Door SizeH × W (mm) | Wall/Ceiling OpeningH × W (in.) | No. of StudCatches/Latches | Shipping Wt.(lbs.) | Shipping Wt.(kg.) |
| 8 × 8 | 203 × 203 | 8 5/16 × 8 5/16 | 2 | 9.75 | 4.4 |
| 12 × 12 | 305 × 305 | 12 5/16 × 12 5/16 | 2 | 11.25 | 5.1 |
| 14 × 14 | 356 × 356 | 14 5/16 × 14 5/16 | 2 | 12.25 | 5.6 |
| 16 × 16 | 406 × 406 | 16 5/16 × 16 5/16 | 2 | 13.25 | 6.0 |
| 18 × 18 | 457 × 457 | 18 5/16 × 18 5/16 | 2 | 14.25 | 6.5 |
| 24 × 24 | 610 × 610 | 24 5/16 × 24 5/16 | 2 | 20.25 | 9.2 |
| 30 × 30 | 762 × 762 | 30 5/16 × 30 5/16 | 2 | 28.55 | 13.0 |
| 36 × 24 | 914 × 610 | 36 5/16 × 24 5/16 | 2 | 29.74 | 13.5 |
| 48 × 30 | 1219 × 762 | 48 5/16 × 30 5/16 | 5 | 40.74 | 18.5 |
| 48 × 36 | 1219 × 914 | 48 5/16 × 36 5/16 | 5 | 48.79 | 22.1 |
