Product Description

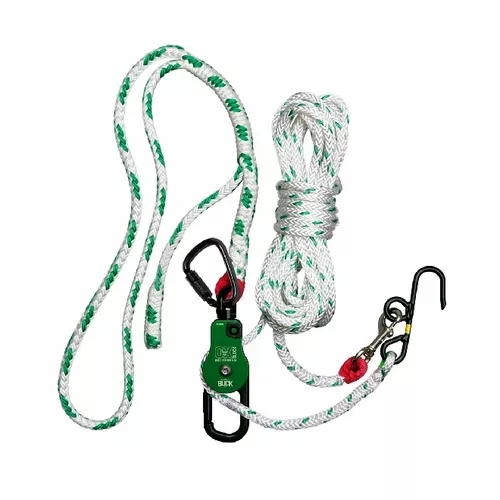

BUCKINGHAM 50061A-4/80 OX BLOCK W/ SLING HANDLINEBUCKINGHAM 50061A-4/80 OX BLOCK W/ SLING HANDLINEOX BLOCK® with 7′ sling, steel carabiner & 80′ handline assembly.The OX BLOCK® handline assembly, as a whole, can be used for hurtman rescue. However, DO NOT USE P/N 2406 handline hook [MBS 500lbs] or handline snap [MBS 750 lbs] for human support. All components used for rescue must have a 5000-lb. rating, configured to accept human support. For rigging, ensure the weak link has a 4 to 1 safety factor.Features:4′ x 5/8″ adjustable slingpatented OX BLOCK®.Steel rigging carabiner80′ x 1/2″ handline assemblyThe handline hook is rated to 500 lbs WLLThe handline snap is rated to 750 lbs MBSProduct Number:50061A-4/80Product Name:OX BLOCK™ HANDLINE ASSEMBLYMaterial:Polyester Rope, Aluminum OX Block (50061), Steel Rigging Carabiner (5005S5), Steel Hook (2406)Length:80′ handline (Rope), 8.27″ inch OX Block (50061), 4.68″ in. Carabiner (5005S5)Width:5/8″ in. Rope, 1.99″ inch OX Block (50061), 3.07″ inch carabiner (5005S5)Weight Rating:5000 lbsWeight:9.5 lbsBreaking Strength:Steel rigging carabiner (5005S5)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs.Links To Relevant Hardware:50061 Ox Block5005S5 Carabiner2406 Handline HookMade In USA:Yes
