Product Description

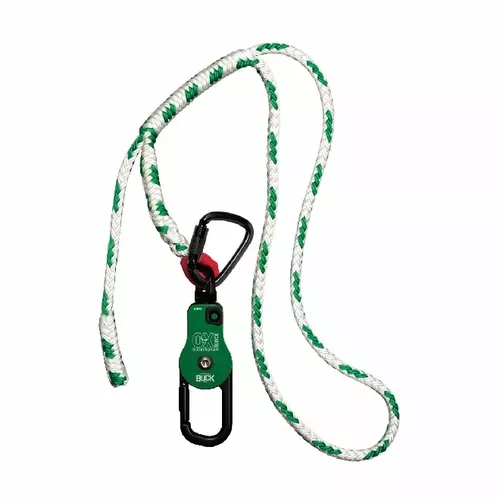

BUCKINGHAM 50061A-4 OX BLOCK W/ SLINGBUCKINGHAM 50061A-4 OX BLOCK W/ SLINGThe OX BLOCK® handline assembly, as a whole, can be used for hurtman rescue. However, DO NOT USE P/N 2406 handline hook [MBS 500lbs] or handline snap [MBS 750 lbs] for human support. All components used for rescue must have a 5000 lb. rating, configured to accept human support. For rigging, ensure the weak link has a 4 to 1 safety factor.The OX BLOCK® is a rope snatchblock with an integrated friction bar used for:Hurtman/self-rescueLoweringRaisingSnubbing loadsProduct Number:50061A-4Product Name:OX BLOCK™ HANDLINE ASSEMBLYMaterial:Polyester Rope, Aluminum OX Block (50061), Steel rigging carabiner (5005S5), Steel Hook (2406)Length:4′ Sling (Rope), 8.27″ OX Block (50061), 4.68″ carabiner (5005S5)Width:5/8″ Rope, 1.99″ OX Block (50061), 3.07″ carabiner (5005S3)Weight Rating:5,000 lbs.Weight:4.25 lbs.Breaking Strength:Carabiner (5005S5)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs.Links to Relevant Hardware:50061 OX Block™5005S5 CarabinerOX Block™ Standards:ASME B30 CompliantMade In USA?:Yes
