Product Description

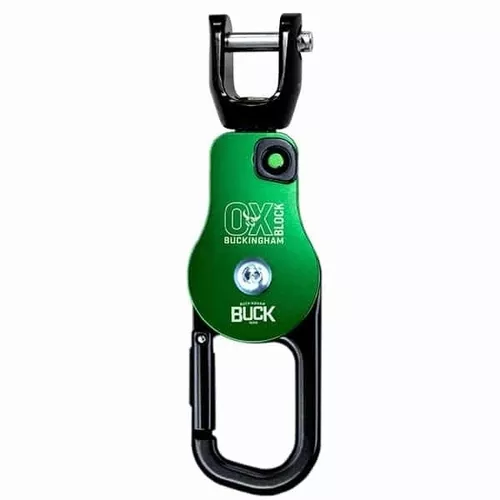

Buckingham 50063 Ox Clevis Top w/ Buck Pin – 50063Buckingham 50063 Ox Clevis Top w/ Buck Pin – 50063Buckingham’s Ox Block® Clevis Top with the newest addition, the Buck Pin. The original design featured a shoulder bolt design which required a ratchet and a hex wrench to remove the lock nut. It also required a new lock nut every time you change accessories, but the Buck Pin makes this process much easier. Now you can simply remove the pin at the press of a button!Tips/hints: If you want to attach something to the clevis while wearing insulated gloves, you could leave the pin engaged in only one hole so that the clevis is open before you put the gloves on. Then you can push it closed easily while wearing the gloves. The pin can be removed with a screwdriver while wearing the gloves, but it is much easier without them.SpecificationsProduct Number50063Product NameOx Clevis Top w/ Buck PinMaterial:Lightweight AluminumLength:10.5″Width:2″Gate Opening Capacity:1.5″Weight:2.15Adjustable Sling:NoHOOK TO EYE:MBS:6,000 lbsWLL:1,500 lbfSHEAVE TO EYE:MBS:10,000 lbsWLL:2,500 lbfOX Block™ Standards:ASME B30 CompliantMade In USA?:YesProduct Number223892RProduct NameBuck PinEffective Length (between head and plunger)1.85″Overall Length2.4″Diameter1/2″Weight2.1 ozMaterialZinc Plated Alloy SteelFor Use W/Ox Block w/ Clevis TopStandardsPin itself not tested to a standard. Tensile tested in the Ox clevis to our 10,000 lbf MBS for the Ox Block.Made in the USAYes
