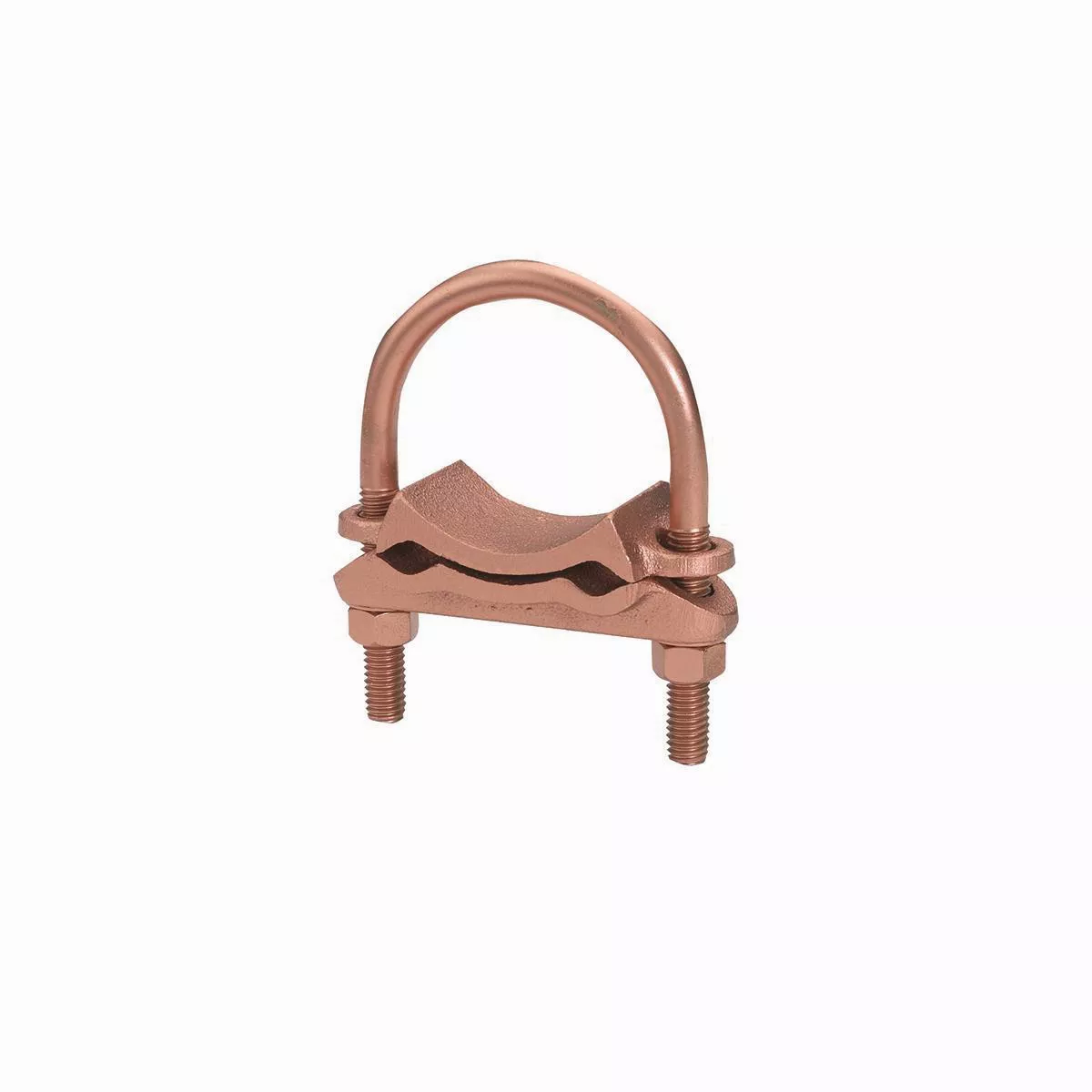

Mechanical Grounding Connector, 2 Parallel Cables to Rod or Pipe, 4 AWG ( Sol.) – 2/0 AWG (Str.), 4″ to 4-1/2″ Rod, 4″ Pipe.
Rated for Direct Burial in earth or concrete
UL467 Listed for the US and Canadian Markets
One-wrench installation
Specifications
Brand Name
Burndy
Sub Brand
Burndy
Item Name
Grounding Connector
Type
Mechanical
Conductor Size
4 AWG Solid, 2/0 AWG Stranded
Rod Size
4 – 4-1/2 in
Material
High Copper Alloy
Series/Model
GD
Dimensions
5-7/8 in W x 6-3/8 in H
Mounting Type
3/8 in
For Use With
4 in IPS
Standards
UL 467, NFPA 78-86, RoHS Compliant
Application
For Joining a Range of Two Parallel Copper Cables to Rod or Pipe and Burial in Ground or Concrete
UPC
781810260463
