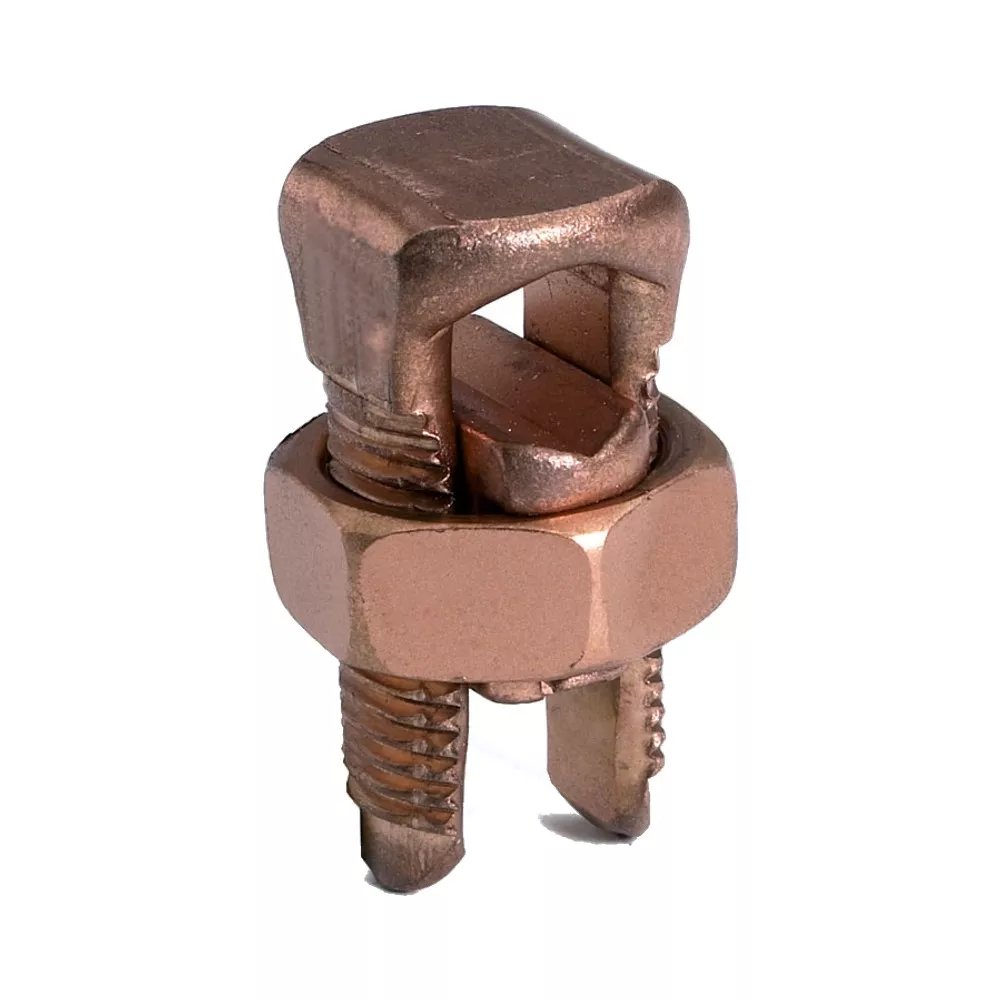

Split bolt features compact, high strength, high copper alloy, SERVIT® split-bolt has free-running threads and easy to grip wrench flats. Highly resistant to season cracking and corrosion, the SERVIT® provides maximum pressure and assures a secure connection on all combination of run and tap conductors. It accommodates 3-maximum size conductors.
UL467 Listed for Direct Burial applications in earth or concrete
Compact, high-strength, copper alloy with free-running threads and easy to grip wrench flats
Highly resistant to cracking and corrosion
Specifications
Brand Name
Burndy
Sub Brand
Servit®
Item Name
Split Bolt
Type
KS, Compact
Conductor Size
2 -2/0 sol CU, 2 -2/0 str CU
Material
High Conductivity Copper Alloy
Finish
Plain Copper Plated, Untreated
Dimensions
1.2 in L X 0.51 in W
Standards
UL 467, CSA Certified, RoHS Compliant
Application
For Direct Burial Applications in Earth or Concrete, Copper
UPC
781810012000
