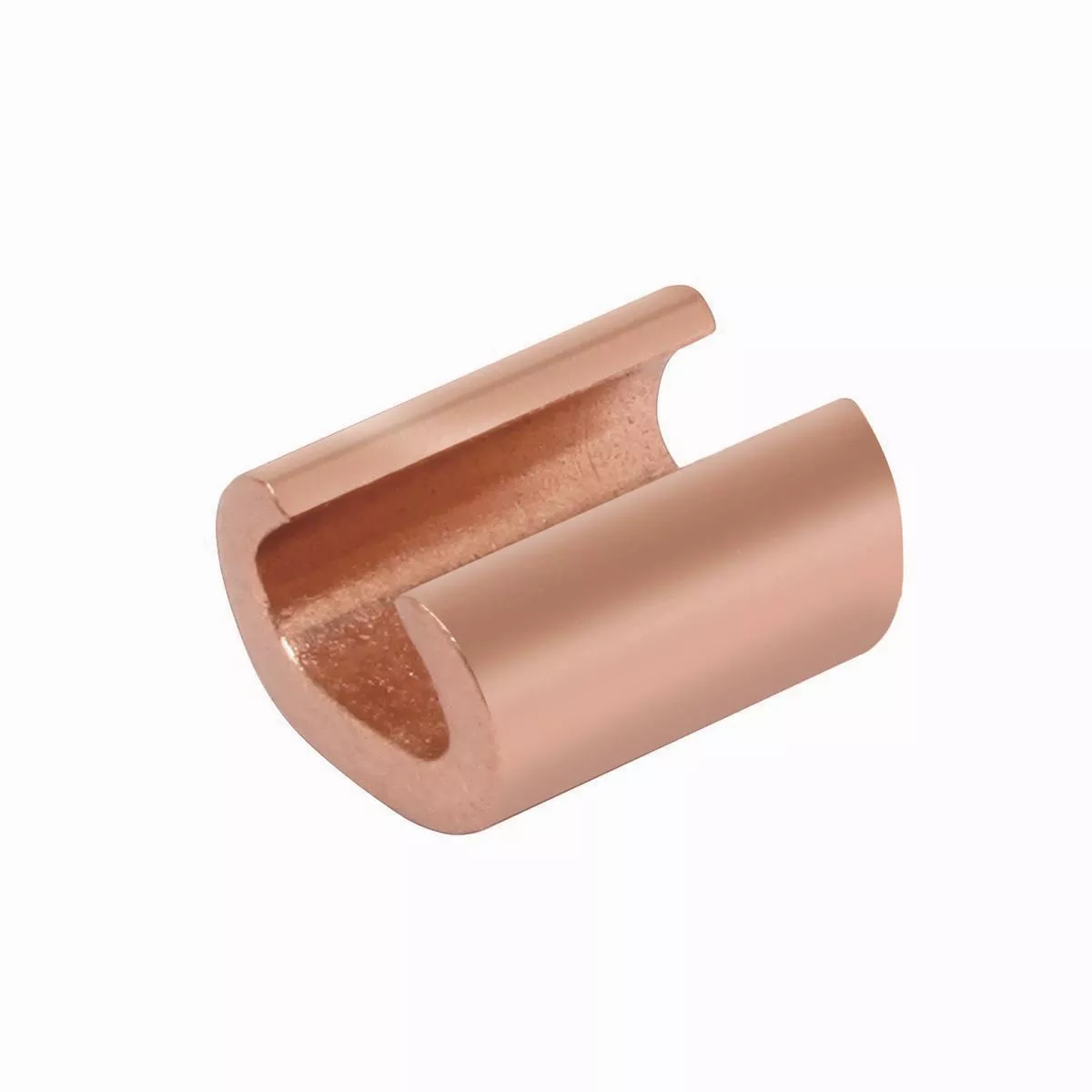

C-tap compression sleeve. Copper CRIMPIT™ connector is a range-taking C-shape compression connector for making tap or parallel copper connections from 12 solid to 4/0 strand conductor. Compact size, easy to tape and insulate connection. Economical low installation cost.
Range-taking connector lowering inventory requirements
Compact size, easy to tape and insulate connection
High conductivity wrought copper provides low resistance and excellent electrical conductivity
Specifications
Brand Name
Burndy
Sub Brand
Crimpit™
Item Name
C-Tap Connector
Type
Parallel
Voltage Rating
600 – 35000 V
Run Conductor Size
6-4 AWG
Tap Conductor Size
14-8 AWG
Material
High Conductivity Wrought Copper
Finish
Plain Copper Plated, Bare
Series/Model
YC-C Series, UL Model
Length
5/8 in
Width
0.75 in
Height
0.76 in
Temperature Rating
90 °C
Standards
UL Listed, RoHS Compliant
Application
Making Tap or Parallel Copper Connections
UPC
781810113752
