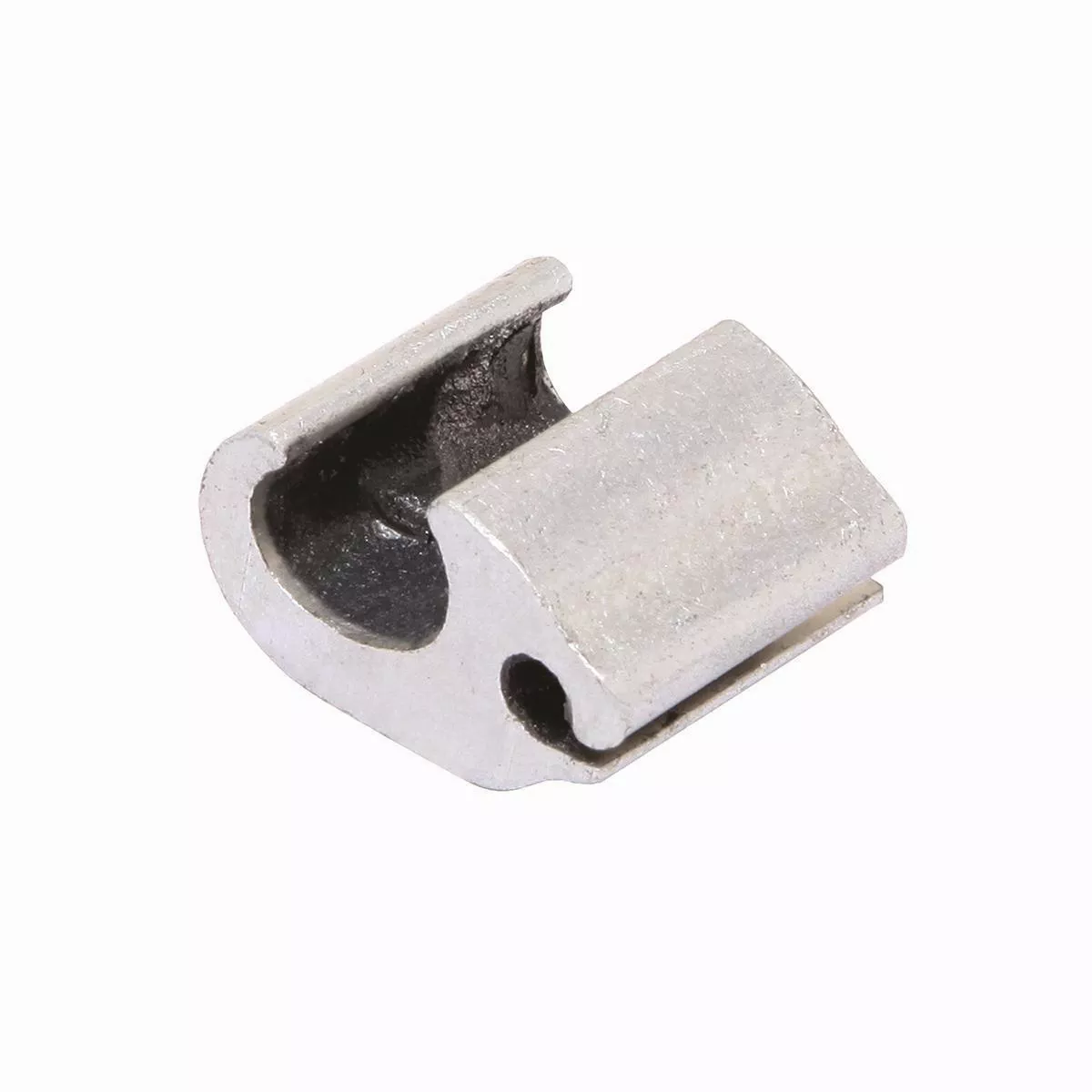

Compact compression connector designed to tap small lighting wires from secondaries. Figure 6-shape separates run and tap, and minimizes galvanic corrosion.
Compact compression connector designed to tap small lighting wires from secondaries
Figure 6-shape separates run and tap, minimizing galvanic corrosion
Connector can be gripped in tool and slipped over line for easier installation
Pre-filled with PENETROX joint compound and stripsealed
Specifications
Brand Name
Burndy
Sub Brand
Crimpit™
Item Name
C-Tap Connector
Type
YPC-A-U
Run Conductor Size
6-4 AWG ACSR, 6-2 AWG Compressed ACSR, 4-2 AWG Solid, 6-2 AWG Stranded Aluminum and Copper, 4-2 AWG Compressed Aluminum
Tap Conductor Size
14 AWG Solid, 8 AWG Stranded Aluminum and Copper
Material
Copper
Finish
Bare
Series/Model
YPC-A-U Series
Length
5/8 in
Width
0.56 in
Height
0.97 in
Standards
ROHS Compliant
Application
Combinations of Copper, Aluminum, ACSR, Compressed and Compact Conductors
UPC
781810135686
