Product Description

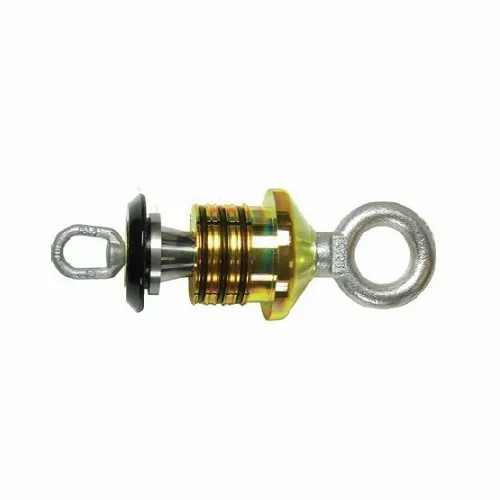

DCD 00617-050 Duct Puller 50mm DuctDCD 00617-050 Duct Puller 50mm DuctPart 00617-050DescriptionMade to order Metric Duct Puller50 mmNominal Duct Size50 mm3:1 Safe Working Load19.1 kNRear Eye Capacity (3:1 SWL)4.9 kNMinimum Inside Duct Diameter1.437 inch / 36.5 mmMaximum Inside Duct Diameter1.812 inch / 46.0 mmWeight0.68 kgDuct Sleeve Part No. 00626-050Note: Safe Working Load is based on the duct yield strength to protect from creep failure.Metric Version00617 Duct Pullers are the same as the 00616 series, but are designed with jaws that allow sizing to metric duct sizes. These Pullers are made to order.The 00616/00617 series pullers were designed based on the older 00619 series pullers. After a customer request for a easier to handle puller we created a puller with a steel face plate instead of polyurethane. This design change has been made to satisfy customer request. As with the 00619 series, these pullers are designed with a larger expansion range in each unit as compared to the 00620 series.The puller comes standard with a duct plugger installed and complete with a rear pulling eye.
