Appleton™ explosionproof, dust-ignitionproof Contender™ Series factory sealed control stations confine the arcing of devices within the enclosure, preventing ignition of ignitable atmospheres during control operation of motors and other equipment. A variety of push buttons and selector switches are available for use in conjunction with contactors or magnetic starters for remote control of motors. They provide circuit control and/or selection. Pilot lights are available to provide visual assurance that an electrical function is being performed at a remote or local location. Contender™ Series control stations are designed for use in classified areas where flammable vapors, gases or highly combustible dusts are present.
Specifications
| Brand Name | Appleton | Sub Brand | Division 2 Contender™ |

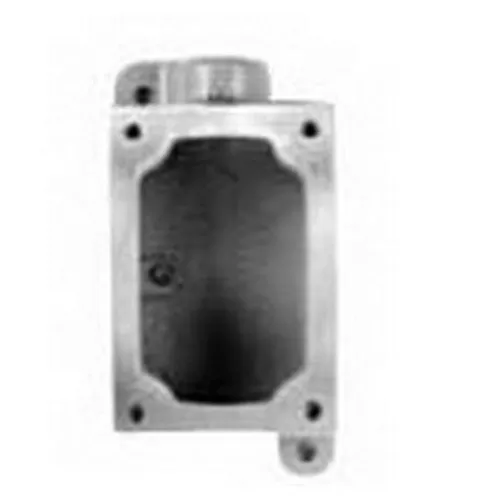

| Item Name | Device Box | Type | Feed Thru, Rectangular, Sealable |
| Number of Gangs | 1 | Material | Aluminum |
| Finish | Galvanic/Electrolytic Zinc Plated | Mounting Type | Wall/Ceiling |
| Cable Entry | (2) 3/4 in Hub | Standards | UL 508, 698, 1203, UL File Number E10449, E81751 |
| Application | For Use with Contender Series Tumbler Switches, CPS 20 A Factory Sealed Receptacles and CPP Plugs, U-Line 20 A Receptacles, Division 2 Contender Series | UPC | 781381698184 |
