APPLICATIONS:- Complies with a wide range of classified area requirements.- Corrosion-resistant: ideal indoors or out.- For pulling of wires.- Connect conduit lengths and change direction of conduit runs.- Provide access for maintenance.FEATURES:- Malleable iron bodies have high tensile strength and ductility.- Provides great resistance to corrosion, impact, and shock.- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity.- Furnished with covers.- General purpose wiring.- Designed for use in Class I, Groups A, B, C, and D; Class II, Groups E, F, and G; and Class III.- Internally threaded body with externally threaded covers.- Standard O-rings provide raintight fit. NEMA 3, 4.- Internal ground screw standard.- Smooth, rounded integral bushing in each hub type box protects conductor insulation.
Specifications

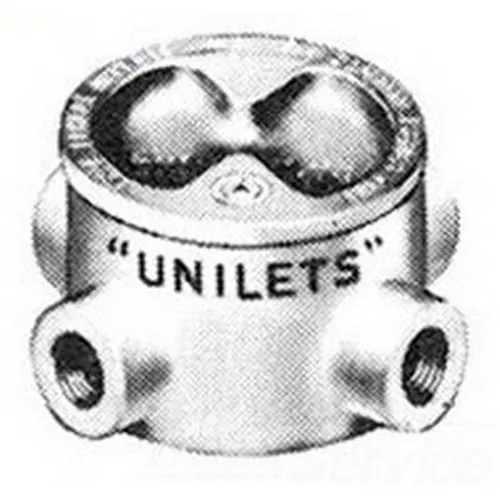

| Brand Name | Appleton | Sub Brand | Unilet |
| Item Name | Outlet Box with Cover | Type | 4-Outlet |
| Length | 3-3/4 in | Width | 3-3/4 in |
| Depth | 1.63 in | Cubic Capacity | 13.8 in³ |
| Material | Malleable Iron | NEMA Rating | NEMA R |
| Cable Entry | (4) 3/4 in Hub | Cover Size | 3.38 in |
| For Use With | Threaded Rigid Conduit | Standards | UL 886, File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 and 2, Groups A, B, C, D, Class II, Division 1 and 2, Groups E, F, G, Class III |
| Application | For Pulling of Wires | UPC | 781381440059 |
