Product Description

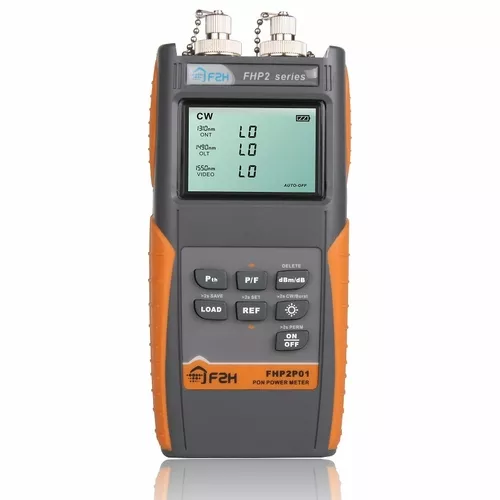

FHP2P01 PON OPTICAL POWER METER WITH SC/FC NEWDescriptionFHP2P01 PON Optical Power Meter is a small size, low lossand good quality handheld meter. It is designed for thetesting, installation and maintenance of FTTX PON network,which can be used for APON, BPON, EPON and GPONnetwork. FHP2P01 PON Optical Power Meter has two outputports for ONU and OLT/Video, which supports CW/burstupstream detection at 1310nm and downstream signal at1490/1550nm. It can directly show the status of pass,warning or failure by threshold testing. FHP2P01 is an idealtool for PON installation and maintenance.SpecificationFeaturesHandheld, easy-to-carry and useP/F testing and normal testing modeTwo testing ports with “ONU” & “OLT/Video”S u p p o r t 1 3 1 0 n m u p s tr e a m CW/ b u r s t s i g n a l a n d1490nm/1550nm downstream signalDesign for networks of APON, BPON, EPON and GPONThreshold programmableHuge data storage capability900 test results for storageOptional SC/APC adaptersCalibrated WavelengthLinearity(dB)Isolation Rate(dB)Measuring Range (dBm)Insertion Loss(dB)BroadbandAccuracyThresholdData StorageAccessories AdaptorsOperating TemperatureRelatie HumidityCommunication portPower supplyDimensionWeight1310nm (Burst)1310nm(CW) 1490 nm 1550 nm ± 0.2@1550 = -40dBm>40@1490nm>40@1310nm>40@1310nm>40@1550nm>30@1550nm>30@1490nm -30~16 -40~16 -50~16 1.51260~360 1480~500 1539~5650.5db±1nW @ 1550 nm 10 groups(configured via PC-software) 900SC/PC(standard)-10+50°C 0%~5%,non-condensing USB port2pcs*Ni-MH AA; USB cable160mm*76mm*45mm About 400gStandard Accessories2*SC/PC adapters, 2*FC/PC adapters, 3*ceramic sleeves, 2*AA rechargeablebatteries, USB cable, test report, carrying bag, CD software, user manualOptional Accessories2*ST/PC adapters
