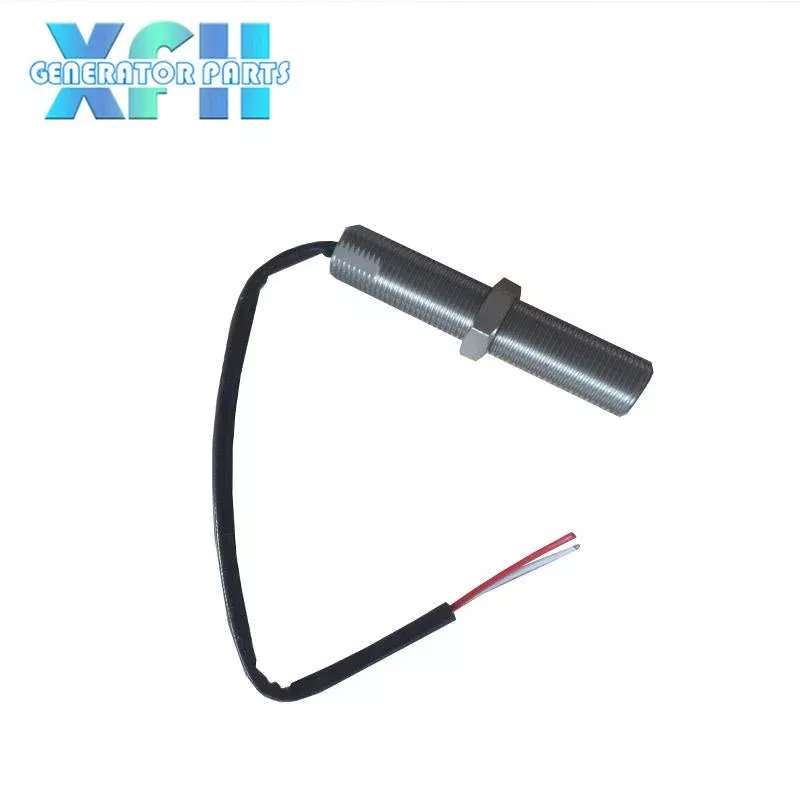

Generator MPU Magnetic Pickup Speed Sensor MSP674 indicates when ring gear teeth, or other ferrous projictions,pass the tip of the sensor.Electrical impulses are induced within the coil and sent to speed control unit.The signal from the magnetic speed sensor,teeth per second is directly proportional to engine speed.
| Generator MPU Magnetic Pickup Speed Sensor MSP674 | |||
| 3/8 – 24 UNF Threaded | 3/4 – 16 UNF Threaded | ||
| MSP6729 | 6 Shielded Cable / 2.5 | MSP6724 | 3.5 With 3 Leads / Automotive Connector |
| MSP6730 | 6 Shielded Cable / 1.5 | MSP6724C | 3.5 With 3 Leads / Automotive Connector Mating Half Connector |
| MSP6731 | 6 Shielded Cable / 4 | MSP6734 | 3.5 With 4 Leads |
| MSP6742 | 1 Shielded Cable / 2.7 | MSP6735 | 3.5 With 3 Leads / Packard Connector |
| MSP6744 | 2.29 With 8/32 Stud Terminals / 1200 Ohms | ||
| 5/8 – 18 UNF Threaded | |||
| MSP674 | 3 Without Mating Half Connector / High Output | MSP6720 | 4 With 6 Leads |
| MSP675 | 3 With 7 Leads | MSP6721 | 3 With 3 Leads / Automotive Connector |
| MSP676 | 5 With 12 Leads | MSP6721C | 3 With 3 Leads / Automotive Connector with Mating Half Connector |
| MSP677 | 3 Without Mating Half Connector / Military Style Connector | MSP6728 | 3 With 10 Leads / Packard Connector |
| MSP678 | 5 Without Mating Half Connector / Military Style Connector | MSP6728C | 3 With 10 Leads / Packard Connector with Mating Half Connector |
| MSP679 | 3 Mating Half Connector / Weather Boot /Military Style Connector | MSP6732 | 3 With 4 Leads / Dual Output / Dual Packard Connectors |
| MSP6710 | 5 Mating Half Connector / Weather Boot /Military Style Connector | MSP6732C | 3 With 4 Leads / Dual Output / Dual Packard Connectors with Mating Half Connector |
| MSP6719 | 2.375 With 12 Leads | MSP6743 | 3.75 With 8/32 Stud Terminals / 1200 Ohms |
| M16 x 1.5 Threaded | |||
| MSP6714 | 3 Without Mating Half Connector / Military Style Connector | MSP6723C | 3 With 3 Leads / Automotive Connector /Mating Half Connector |
| MSP6715 | 3 With Mating Half Connector / Weather Boot /Military Style Connector | MSP6739 | 3 With 3 Leads / Packard Connector / With S Secondary Lock |
| MSP6723 | 3 With 3 Leads / Automotive Connector | MSP6745 | 6 Without Mating Half Connector / Military Style Connector |
| M18 x 1.5 Threaded | |||
| MSP6741 |
3.25 With 9 Leads / Metri-Pack Connector |
MSP6746 | 3.4 With 16 Leads / Commercial Connector |
