Product Description

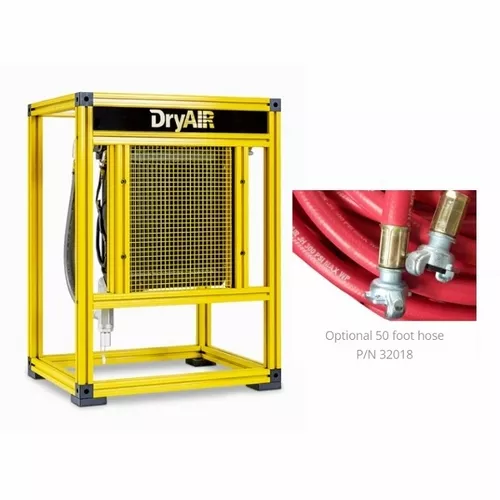

GMP General Machine Products 89060 Aftercooler Compressor 250 CFMGMP General Machine Products 89060 Aftercooler Compressor 250 CFMP/N 89060 Compressor Aftercooler250 CFMThe 250CFM Compressor Aftercooler has been designed to cool compressed air and remove water droplets prior to entering a GMP Cable Blowing Machine.Features a heavy-duty moisture separator and coalescing filter to trap moisture and condensed oil. Manual drain valves provide the removal of captured fluidsCompletely self-contained. Packaged in a construction skid with a centrally located bar for single-point lifting and an expanded metal heat exchanger guardChicago fittings are provided on the inlet and outlet connections for maximum versatility in the field.Includes a 1-micron coalescing filter with manual drainDC fan motor is run from the compressor battery and automatically starts when the system is pressurized13-foot power cord with alligator clips to connect to the compressor starting batteryPortable design for varied applications and mobilityCools air to within 20° of ambient temperature to optimize moisture removalSpecificationsLength:19 in. (483 mm)Width:24 in. (610 mm)Height:32 in. (813 mm)Weight:70 lbs. (32kg)Fan Power Requirments17.5 A, 12 VDCMax Working Pressure200 psi (13.9 bar)Max Air Compressor Flow Rate250 cfm (7 M³/Min)Air Hose Connections2 Lug Chicago Coupling
