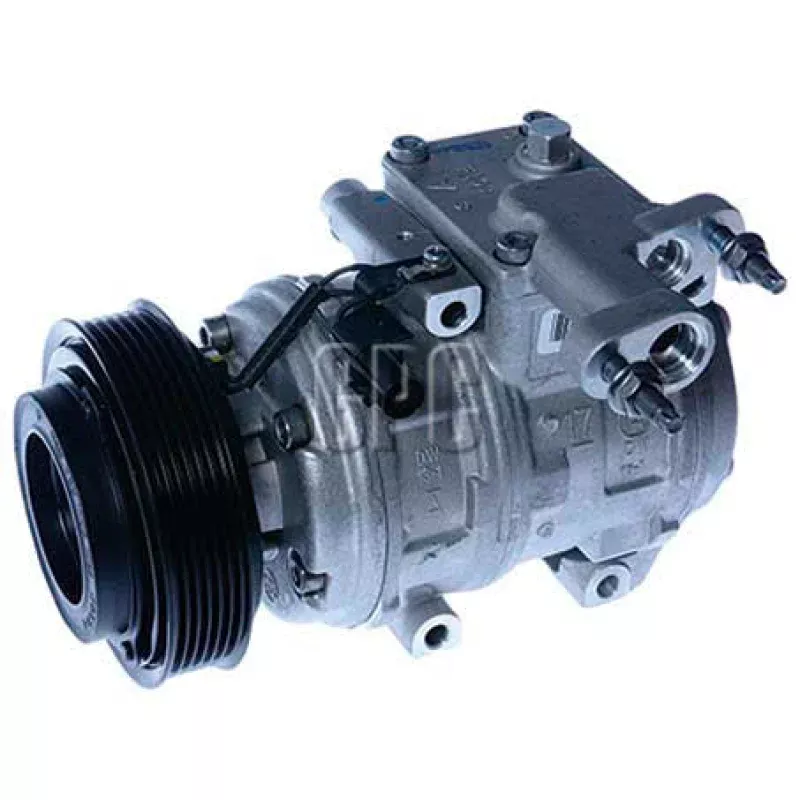

The Hanon System HCC air conditioning compressor is a 12V direct mount unit in the HS20 series, sold under part number CXH045. It is listed with original equipment number 97701-4D811 and uses a pad fitting type with a 6 groove pulley section.
This compressor is specified to suit Kia Grand Carnival VQ 3.5L and 3.8L vehicles from 01/2006 to 11/2014. That fitment window is the key checkpoint for this part, along with the OE number 97701-4D811 and the HS20 series details.
Physically, the compressor has a 118mm clutch diameter, 170ml oil capacity, and a listed weight of 6.5kg. It is a direct mount design, supplied r conditioning compressor for the cooling system.
The unit is branded Hanon System, with Doowon listed as the unit make, and it carries a one year warranty. If you are matching an existing compressor, the part number CXH045 and OE number 97701-4D811 are the most useful identifiers to confirm before ordering.
Key Features
- 12V air conditioning compressor
- HS20 series
- Direct mount design
- Pad fitting type
- 6 groove pulley section
- 118mm clutch diameter
Specifications
- Brand: Hanon System
- Product type: Air conditioning compressor
- Voltage: 12V
- Series: HS20
- Compressor mounting: Direct mount
- Fitting type: Pad
- Pulley section: 6 groove
- Clutch diameter: 118mm
Confirmed fitment
- Kia Grand Carnival VQ 3.5L 01/2006 to 11/2014
- Kia Grand Carnival VQ 3.8L 01/2006 to 11/2014
Application and Buying Notes
Before buying, compare the part number CXH045 and the original equipment number 97701-4D811 with the compressor on the vehicle or the part being replaced. Those identifiers are the clearest way to confirm you are looking at the same HS20 direct mount compressor.
Check the mounting style, because this unit is listed as a direct mount compressor with a pad fitting type and a 6 groove pulley section. Matching the mounting and pulley setup matters just as much as engine size when selecting an air conditioning compressor.
The listed fitment is for Kia Grand Carnival VQ 3.5L and 3.8L vehicles built from 01/2006 to 11/2014. If your vehicle falls outside that range, or if the existing compressor has a different mounting arrangement, do not assume this part will be suitable.
Oil capacity is listed at 170ml, and the compressor weighs 6.5kg. Those figures are useful when comparing replacements, especially where an existing compressor, pipe arrangement, or bracket setup is already in place.
The one year warranty applies to the compressor as supplied. For a clean match, use the OE number 97701-4D811, part number CXH045, and the vehicle application details together rather than relying on model name alone.
Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.
For workshop, fleet, and equipment applications, accurate identification of part number CXH045 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.
Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 97701-4D811, Series HS20, Voltage 12, Dust Cover Y/N No, Product Group 2 AC COMPONENTS.
Additional published details for cross-checking include Part No. CXH045, Brand HANON SYSTEM, Description HCC Air Conditioning Compressor 12V Direct Mount HS20, Clutch Diameter 118mm, Fitting Type Pad, Pulley Section 6 Groove, Suits Unit Make Doowon, Oil Capacity 170ml, Weight 6.5kg, Product Group 1 COOLING.
HCC Air Conditioning Compressor 12V Direct Mount HS20. Part number CXH045 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.
Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.
For part number CXH045, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.
Compatibility note: Please confirm fitment using part number CXH045, OE number 97701-4D811, and the listed Kia Grand Carnival VQ 3.5L or 3.8L application from 01/2006 to 11/2014 before ordering.
