Product Description

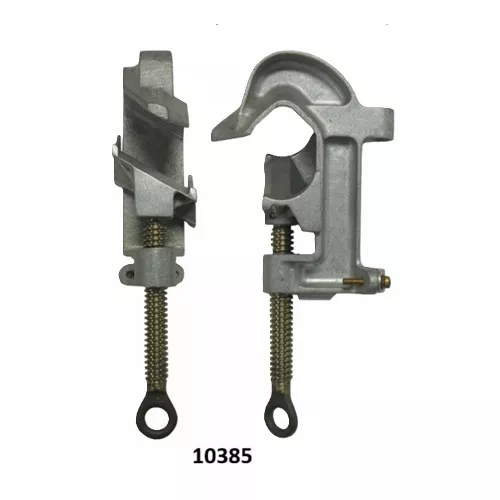

HASTINGS 10385 30° Angle Ground ClampHASTINGS 10385 30° Angle Ground ClampHASTINGS 10385 30° Angle Ground Clamp30° C-HEAD GROUND CLAMPS- The 30° angle ground clamp allows linemen and substation mechanics to easily install grounds beyond the normal reach.- With the 30° angle clamp, linemen and substation mechanics can hold their shotgun stick to nearly a horizontal position and install this ground clamp.SPECIFICATIONS:o MAIN LINE RANGE MAXIMUM / MINIMUM:2″ DIA CABLE OR BUS /4 SOL / 18″ DIA.o MAXIMUM SIZE CABLE :4/0o MAXIMUM FAULT CURRENT RATING :43KA@ 15 CYCLES – 30KA@ 30 CYCLESo TERMINAL TYPE :THREADEDWEIGHT: 2.2LB
