Product Description

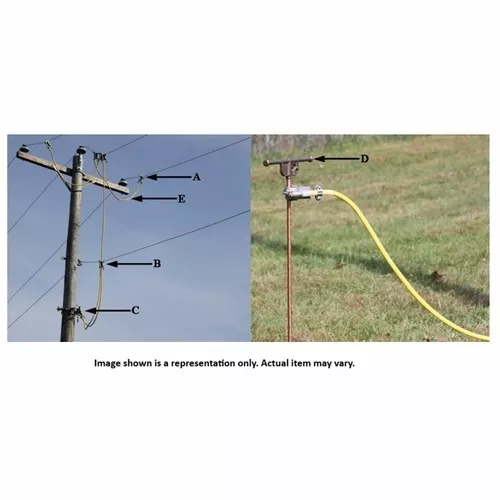

HASTINGS 6873 Distribution/Transmission Grounding Set with 4/0 Str. CableHASTINGS 6873 Distribution/Transmission Grounding Set with 4/0 Str. CableHASTINGS 6873 Distribution/Transmission Grounding Set with 4/0 Str. CableDISTRIBUTION / SUB TRANSMISSION GROUNDING SET- Factory assembled and can be used on a three phase wye or delta system- The grounding set provides jumper lengths adequate for crossarm construction and armless (narrow profile) construction- The grounding set includes a grounding cluster bar which enables the user to provide “single point” grounding- Conductor Range – ground set can be used on No. 6 solid (.16 O.D.) through 1,033 MCM ACSR (1.5″ O.D.)- Grounding Jumpers – jumpers are assembled with bright yellow neoprene jacketed copper grounding cable. This ground cable is very flexible in cold weather.- Fault Current Rating – grounding sets can be ordered with proper cable size to match customers fault current needsSPECIFICATIONS:- Grounding Setwith 4/0 Cable- Each assembly contains the following: A: Quantity 10 – 21575 Ground ClampsB: Quantity 10 – Threaded FerrulesC: Quantity 1 – 6767 Grounding Cluster BarD: Quantity 1 – 4370 Screw Ground RodE: Quantity 3 – 6 Feet Yellow Grounding CableE: Quantity 1 – 12 Feet Yellow Grounding CableE: Quantity 1 – 30 Feet Yellow Grounding CableF: Quantity 3 – 13190-1 Hanger Studs– Fault Current Rating43, 000 Amps – 15 Cycles- Weight77.0 lbs.
