Product Description

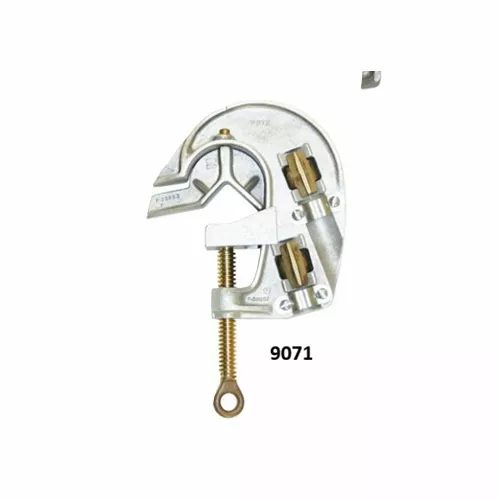

HASTINGS 9071 Ground Clamp for Substation Grounding, AluminumHASTINGS 9071 Ground Clamp for Substation Grounding, AluminumHASTINGS 9071 Ground Clamp for Substation Grounding, AluminumGROUND CLAMPS FOR SUBSTATION GROUNDING -ALUMINUM- The grounding clamps with hanger studs enable substation maintenance crews to utilize their portable grounds on large bus by providing a fault current rated hanger stud as part of the clamp(Clamp numbers 21056, 21546-1, 12282)- Use of the hanger stud clamps could save cost of special ground assemblies made up for each substationSPECIFICATIONS:- MAIN LINE RANGE : MAXIMUM 3 in. DIA BUS OR CABLEMINIMUM 6 STR .18 DIA- Max. size cable :4/0- Max Fault Current Rating: 54KA@ 15 CYCLES,39KA@ 30 CYCLES- Terminal Type:Bolted- Weight4.2 lbs.
