Hazet 4903/4 Stationary universal spring vice, 4 pieces Increased safety – thanks to load-free installation!Can be used for almost any spring strut / shock absorber
Load-free disassembly / assembly with completely relieved shock absorber
New seating and assembly concept
Swivelling in horizontal or veal working position,HAZET recommends ergonomic working height: adjust veally, operate horizontallyDamage to shock absorbers and head plates impossible(no overload risk)Simple, lockable strut mount
High safety
Consistently reliable mounting of head platesThread damage to piston rod impossiblePermanent fixation of spring throughout operation
Secured investment – by using existing components of SYSTEM 4900
Existing basic units 4900-2A and all tensioning jaws of System 4900 may be usedUse of future applications is assured
Allows record keeping by scaling
If recurring, significant time savings by scalingFirm fixation eliminates readjustment at the same spring strut (left / right)
4 steps to success:1. Mount spring strut on clamping disc above gripper and brakes2. Grip spring with universal tensioning jaw3. Actuate clamps with reversible ratchet, cordless screwdriver or pneumatic ratchet4. Remove shock absorber load-free and install new one(then reverse order)
Made in Germany

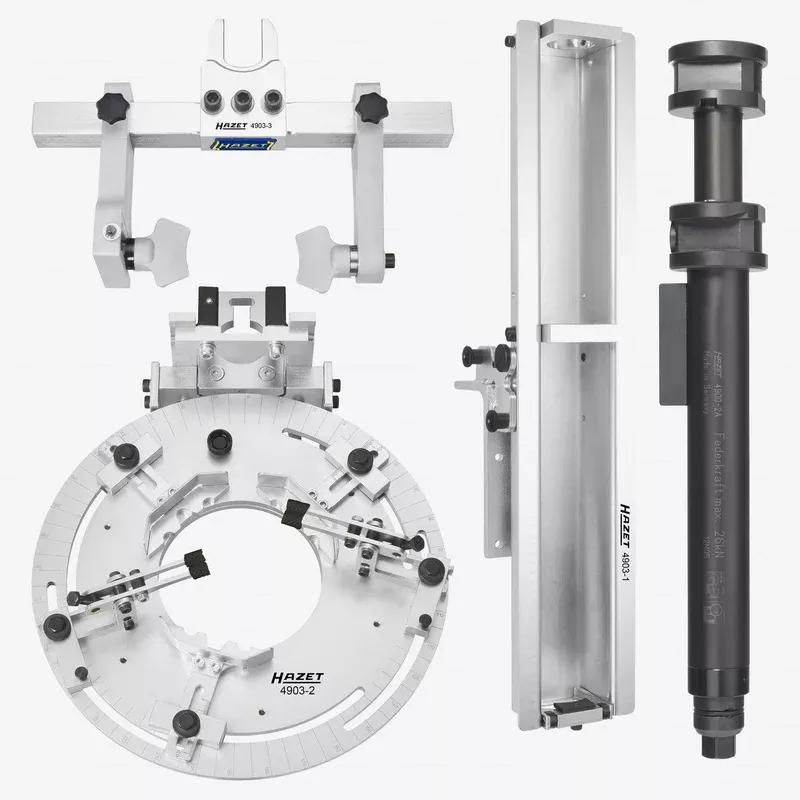

The perfect complete package4 pieces, contents:4900-2 A safety spring vice basic unit4903-1 basic support4903-2 universal clamping disc, adjustable4903-3 universal tensioning jaw (adjustable), safety adapter includedNet weight: 66 kgNumber of tools: 44903/4
