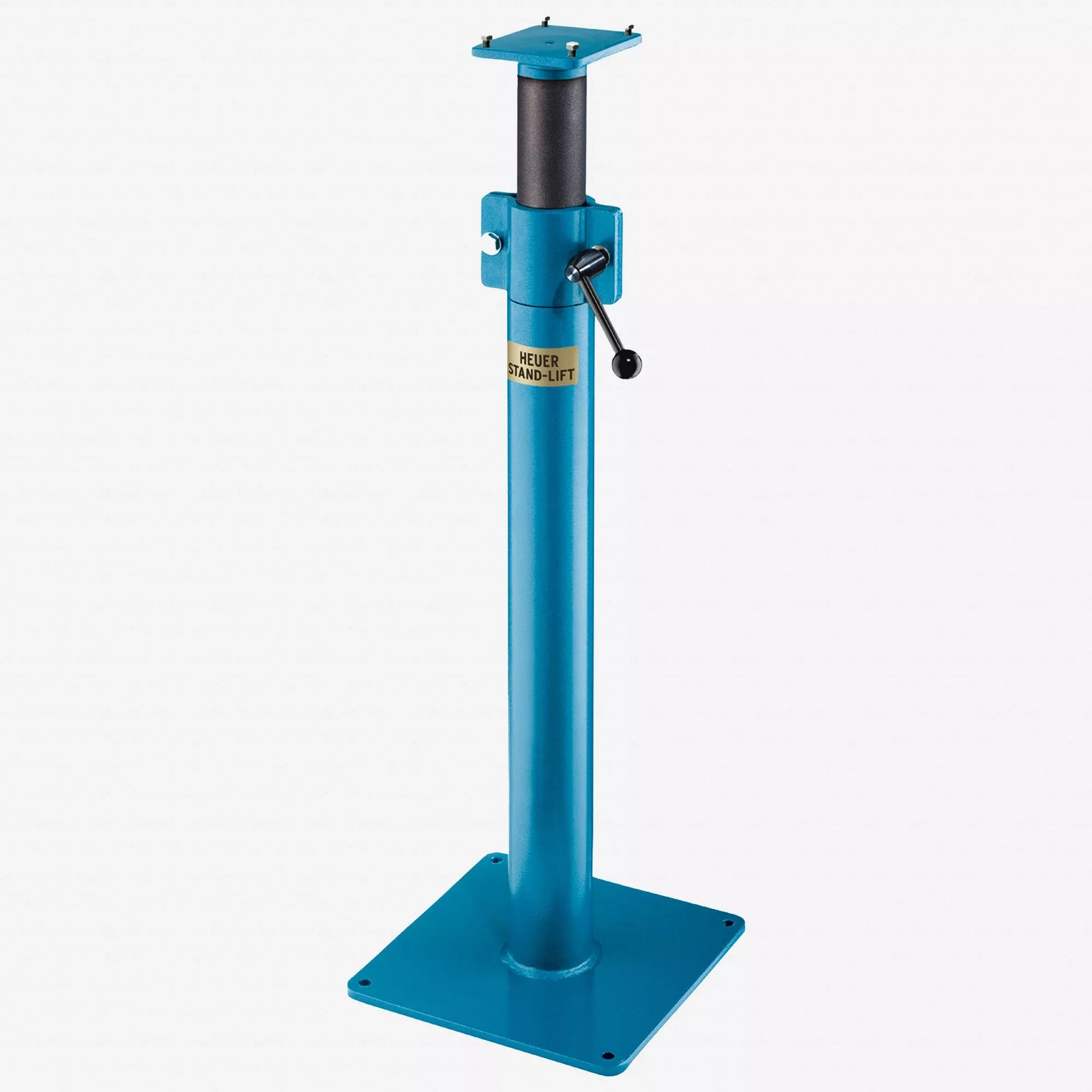

Heuer Stand-Lift, Size 120 mm
The perfect supplement to the Heuer vise for ergonomic working without a workbench
Enables easy adjustment of the workpiece to fit the operator or the work to be carried out
An extremely sturdy base allows the vise to be raised up to 200 mm (7 7/8″) and rotated 360 degrees
The vise is raised by means of a gas shock absorber, specially tuned to the weight of the vise, allowing nearly effortless movement
A single clamp releases and firmly holds the vise in the desired position
Note that four mounting holes are provided in the base, and it must be secured to prevent tipping (hardware not included)
Fits size 120 Heuer vises
Weight: 21 kg (46.3 lbs)
Weight capacity: 4 – 10 kg (8.8 – 22 lbs)
At its lowest point, the mounting plate for the vise sits at 33.9″ (860 mm) from the ground and can be adjusted to a maximum of 41.7″ (1060 mm) high
