APPLICATIONSUse in applications where panel or an extra-deep cover for mounting of controls is desired. Protects equipment from indoor contaminants.SPECIFICATIONS:•Drawn 16 gauge steel•No welded seams or sharp corners•Removable door with unique lift-off hinges•Oil-tight quarter-turn slotted latches•Oil-resistant gasket•Weldnuts provided for mounting optional panels•Bonding provision on door

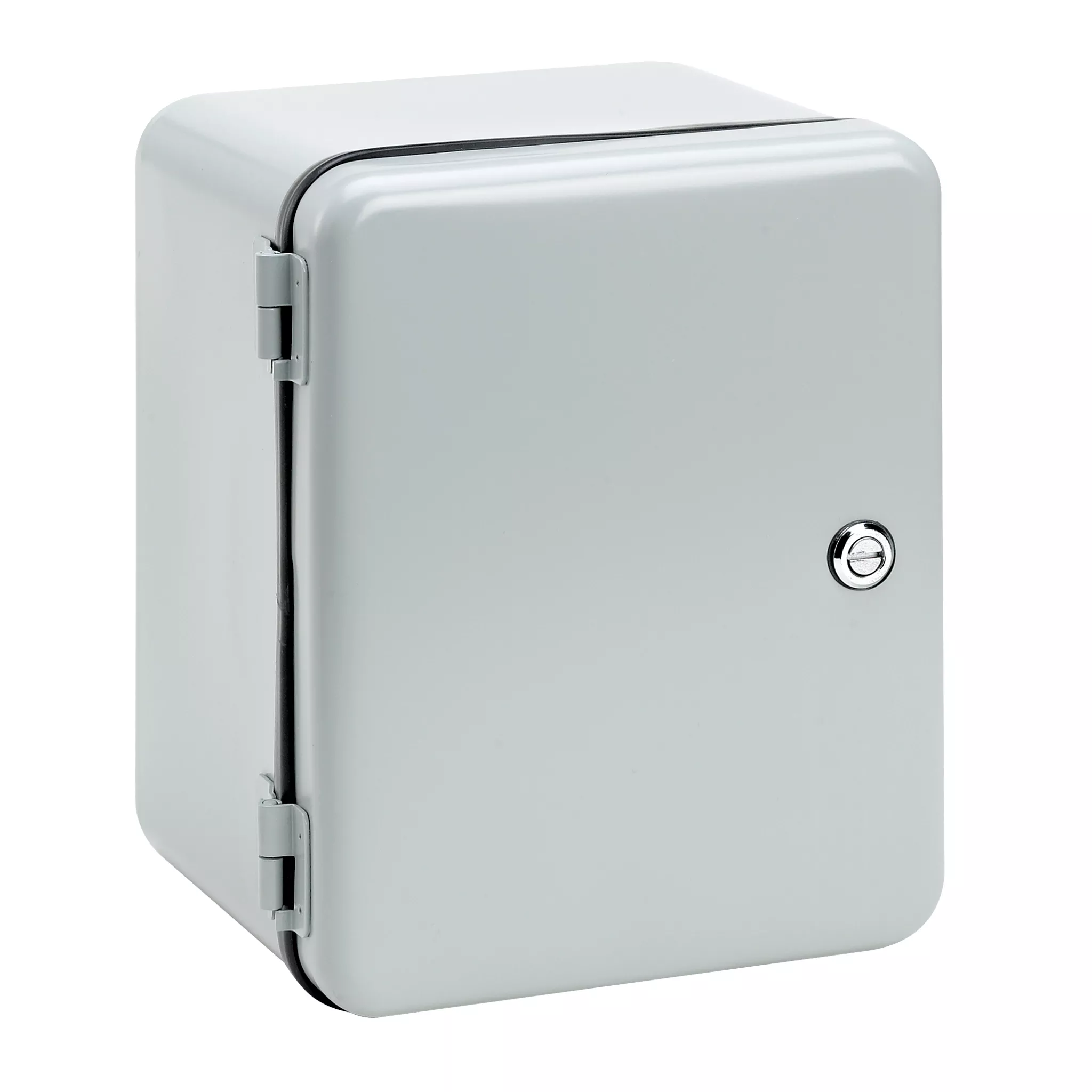

Drawn enclosure
No welded seams or sharp corners
Removable door with unique lift-off hinges
Oil-tight quarter-turn slotted latches
Oil-resistant gasket
Weldnuts provided for mounting optional panels
Bonding provision on door
Specifications
Brand Name
nVent Hoffman
Sub Brand
DesignLine
Item Name
Drawn Enclosure
Type
Contoured, Single Door
Width
8 in
Depth
6 in
Height
10 in
Cover Type
Removable Hinge with Quarter Turn Latch
Gauge
16
NEMA Rating
NEMA 12, IP55
Series
A51
Interior Panel Number
A10P8
Mounting Type
Wall
Material
Steel
Finish
Polyester Powder Painted
Color
ANSI 61 Gray
Standards
UL 508A Listed File Number E61997, cUL Listed per CSA C22.2 No. 94 File Number E61997, NEMA/EEMAC Type 12 , IEC 60529
Application
Use in Applications Where Panel or an Extra-Deep Cover for Mounting of Controls is Desired, Protects Equipment From Indoor Contaminants
UPC
783510604400
