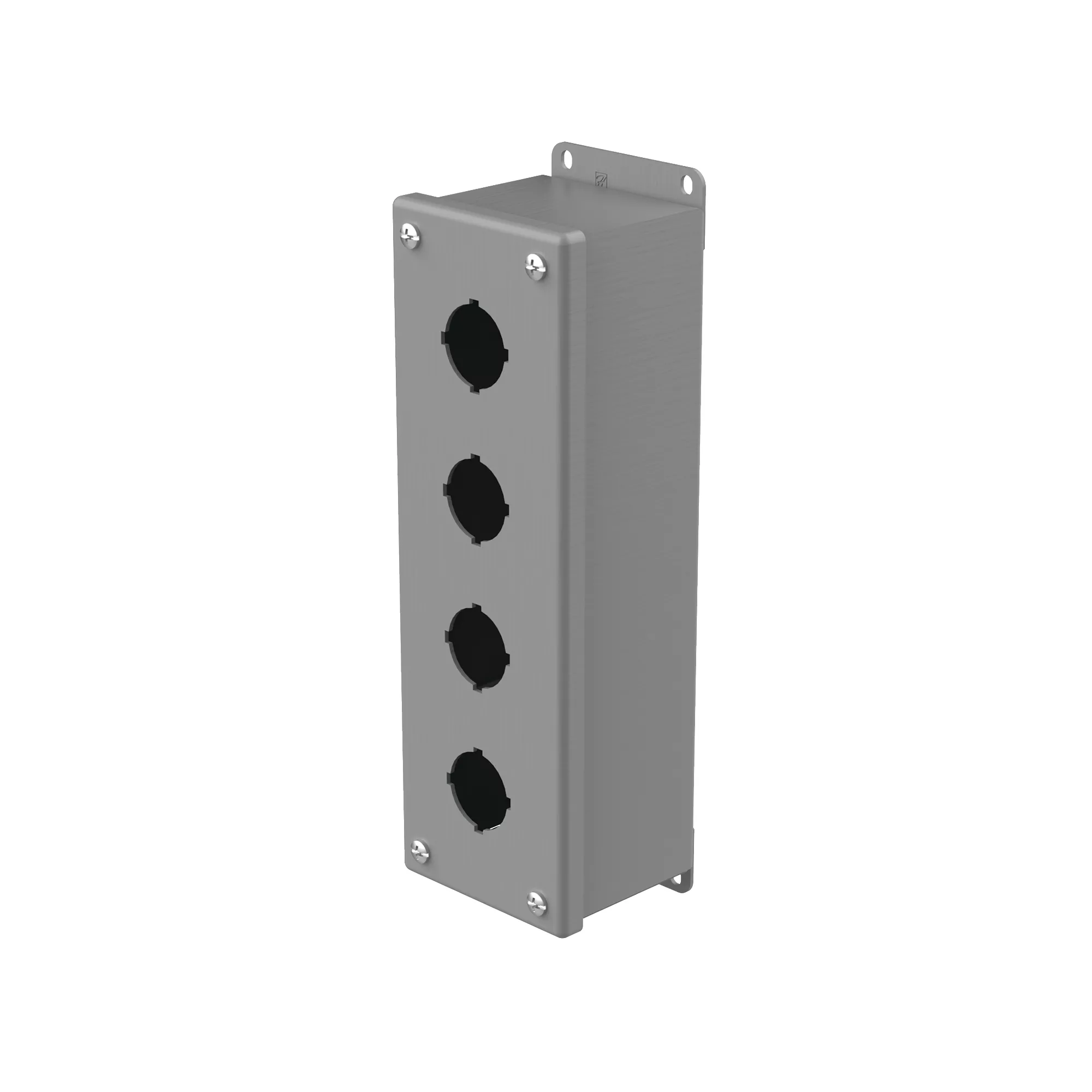

APPLICATION:These pushbutton enclosures are designed to hold 30.5-mm or22.5-mm pushbuttons and switches.SPECIFICATIONS• 16 or 14 gauge steel• Seams continuously welded and ground smooth• Captivated cover screws thread into sealed wells• Bonding provision on cover• Grounding stud on body• Oil-resistant gasket• Factory stamped 4-way pushbutton holes• Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring• External welded-on mounting brackets for easy installation• 30.5-mm or 22.5-mm size holes
Seams continuously welded and ground smooth
Captivated cover screws thread into sealed wells
Bonding provision on cover
Grounding stud on body
Oil-resistant gasket
Factory stamped 4-way pushbutton holes
Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
External welded-on mounting brackets for easy installation
30.5-mm or 22.5-mm size holes
30.5-mm or 22.5-mm size holes
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Push Button Enclosure
Type
4-Hole
Width
3.25 in
Depth
2.75 in
Height
10.25 in
Gauge
16 or 14 ga
NEMA Rating
NEMA 12, IP65
Material
Steel
Finish
Powder Coat
Color
Gray
For Use With
30.5 mm Push Button
Standards
UL 508A Listed, Type 12, 13, File Number E61997, cUL Listed Per CSA C22.2 No. 94, Type 12, 13, File Number E61997, NEMA/EEMAC Type 12, 13, CSA File Number 42186: Type 12, IEC 60529, IP65
Application
For Push Buttons and Switches
UPC
783510580407
