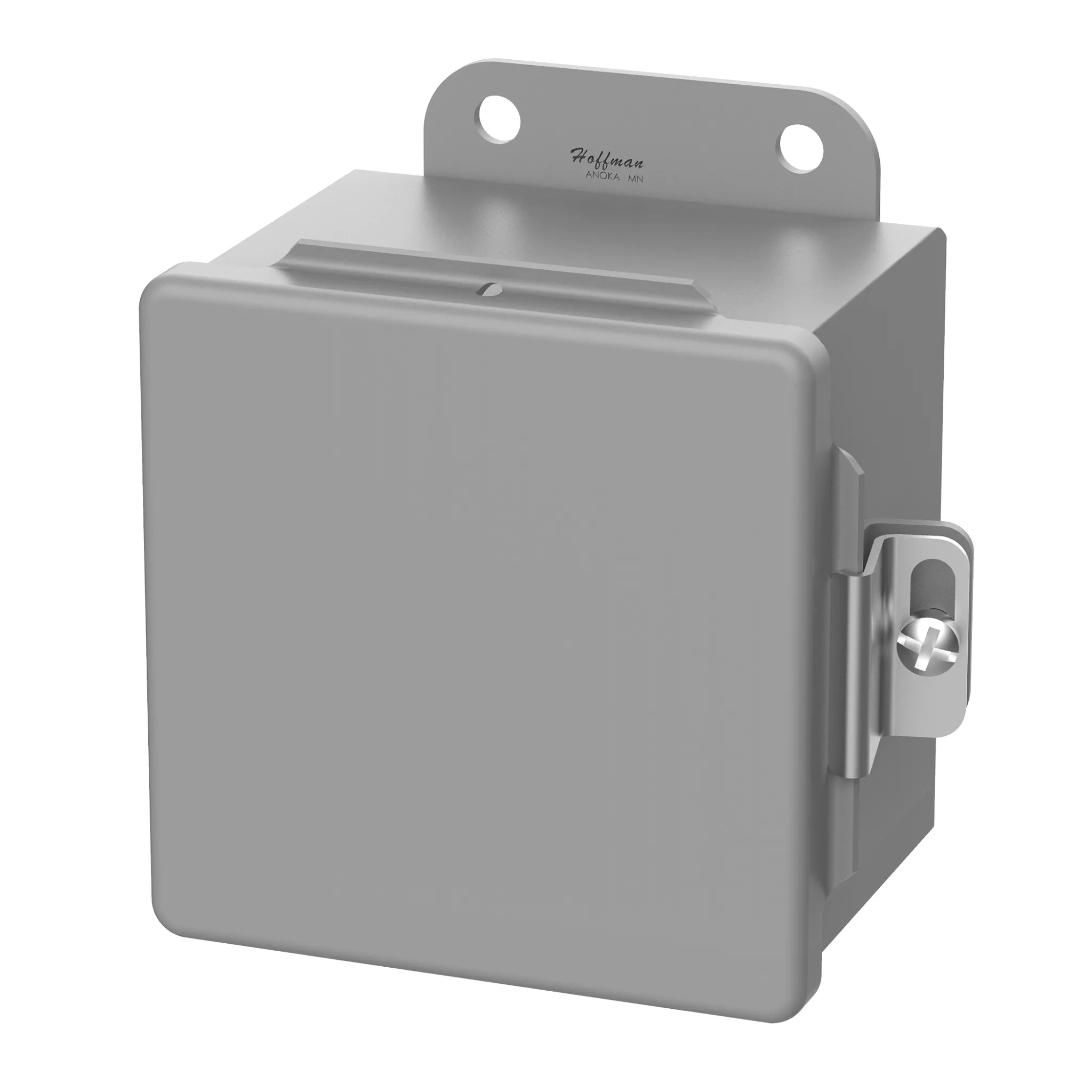

Continuous-hinge with clamps type 12 junction box, 14 gauge steel, ANSI 61 grey polyester powder paint inside and out, Seams continuously welded and ground smooth, Oil-resistant gasket, External screw clamps are quick and easy to operate, Bonding provision on door, External wall-mounting brackets, Easy-to-open.
Seams continuously welded and ground smooth
Continuous hinge
Screw-down door clamps
Bonding provision on door
External wall-mounting brackets for easy installation
Oil-resistant gasket
Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Junction Box
Type
Two Lock, Single Door
Width
254 mm
Depth
127 mm
Height
305 mm
Cover Type
Continuous Hinged with Clamp
Gauge
14 and 16
NEMA Rating
NEMA/EEMAC Type 12, 13, IP65
Mounting Type
Wall
Material
Steel
Finish
Powder Coated
Color
Gray
Standards
cUL Listed, UL 50, 50E, UL File Number E27567, E61997, CSA 22.2 No. 94
Application
This Easy-to-Open, Continuous Hinge Enclosure Features Screw Down Clamps for Secure Closure and can be used in a Wide Variety of Applications
UPC
783510554200
