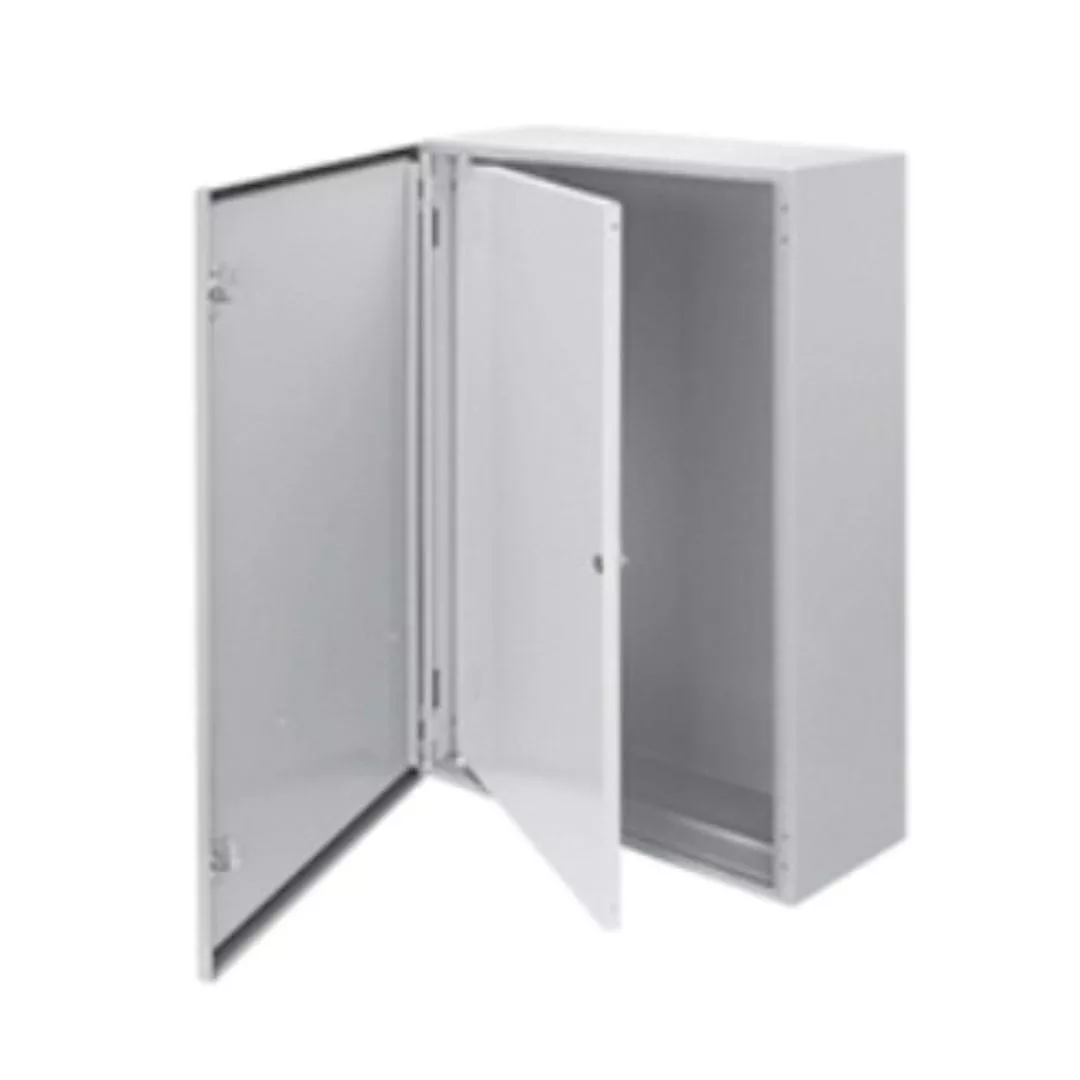

CONCEPT™ swing-out panel clear from the front of the enclosure to provide access to mounted internal equipment. Maximum swing is 106°. Distance from panel surface to door when in the latched position is 1.71 inch (43 mm) for solid doors and 1.45 inch (37 mm) for window doors. Kits include panel, brackets and hardware to mount to the front flange. Panel is painted white. Swing-out panels also can be mounted on front-to-back adjustable rails.
CSPB panels, maximum swing is 94 degrees
CSP panels, maximum panel swing is 106 degrees
Distance from panel surface to door when in the latched position is 1.71 in. (43 mm) for solid doors and 1.45 in. (37 mm) for window doors
Kits include panel, brackets and hardware to mount to the front flange
Specifications
Brand Name
nVent Hoffman
Sub Brand
Concept
Item Name
Swing-Out Panel
Type
106°
Height
452 mm
Width
453 mm
Material
Steel
Color
Light Gray
Finish
Powder Coated
For Use With
20 x 20 in Enclosures
Application
Arc Flash Safety; Controls and Drives; Power Distribution
UPC
783510122805
