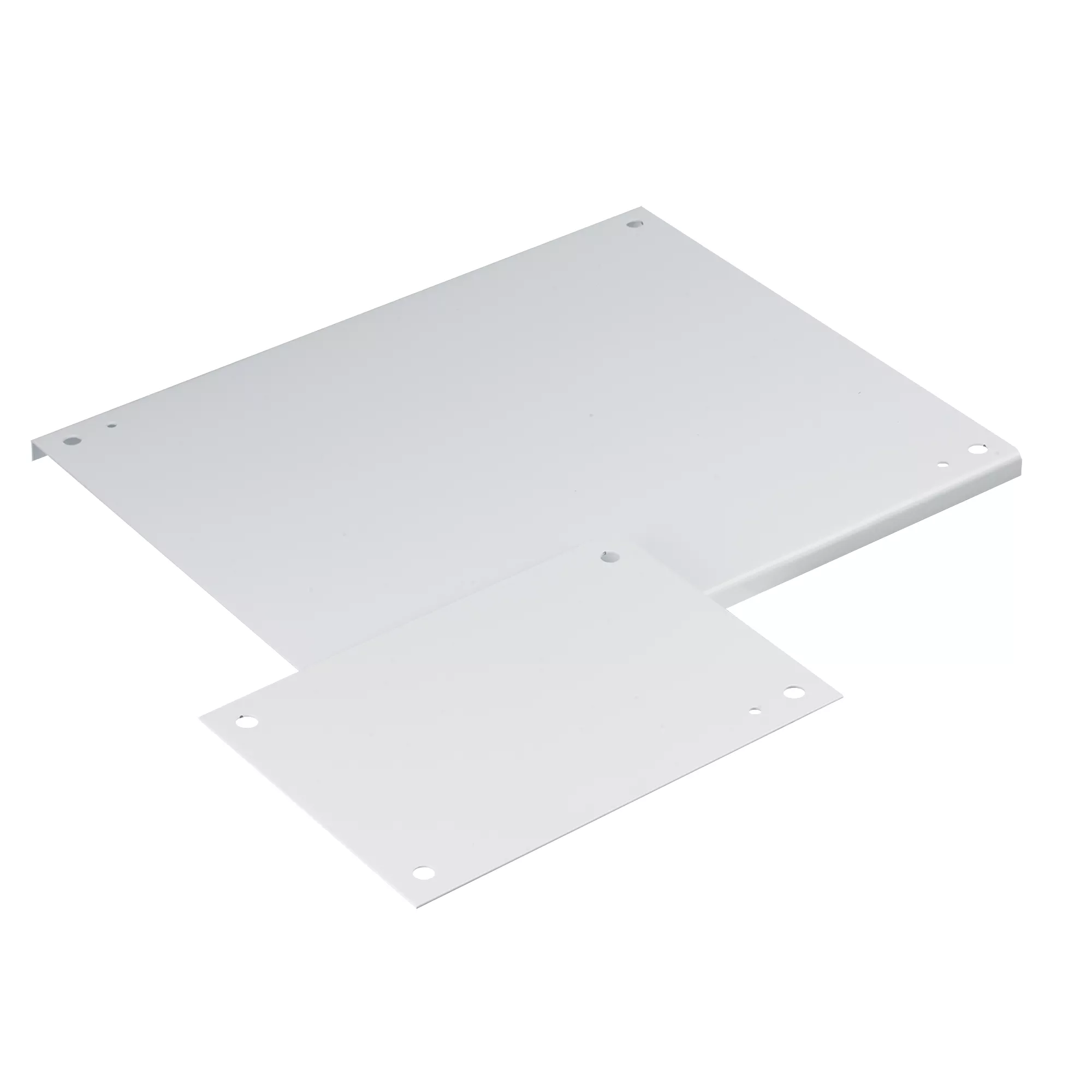

Panels for Type 3R, 4, 4X, 12 and 13 EnclosuresSteel panels are 12 gauge, finished with white polyester powder paint or a conductive, corrosion-resistant coating. Larger panels have flanges on two or four sides. Some larger steel panels are 10 gauge and include extra holes for panel lifting. Aluminum panels are 5052-H32 aluminum alloy. Larger panels have flanges on four sides. Aluminum panels are protected on one side with a plastic film. Stainless steel panels are Type 316 stainless steel. Panel mounting hardware is furnished with all enclosures which accept these panels.
Panel mounting hardware is furnished with all enclosures which accept these panels
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Panel
Type
Panels and Panel Accessories
Height
432 mm
Width
330 mm
Material
Painted Steel
Color
White
Finish
Powder Coated
For Use With
20 x 16 in Type 3R, 4, 4X, 12 and 13 Enclosures
Application
Arc Flash Safety; Controls and Drives; Corrosive Environments; Power Distribution
UPC
783510231507
