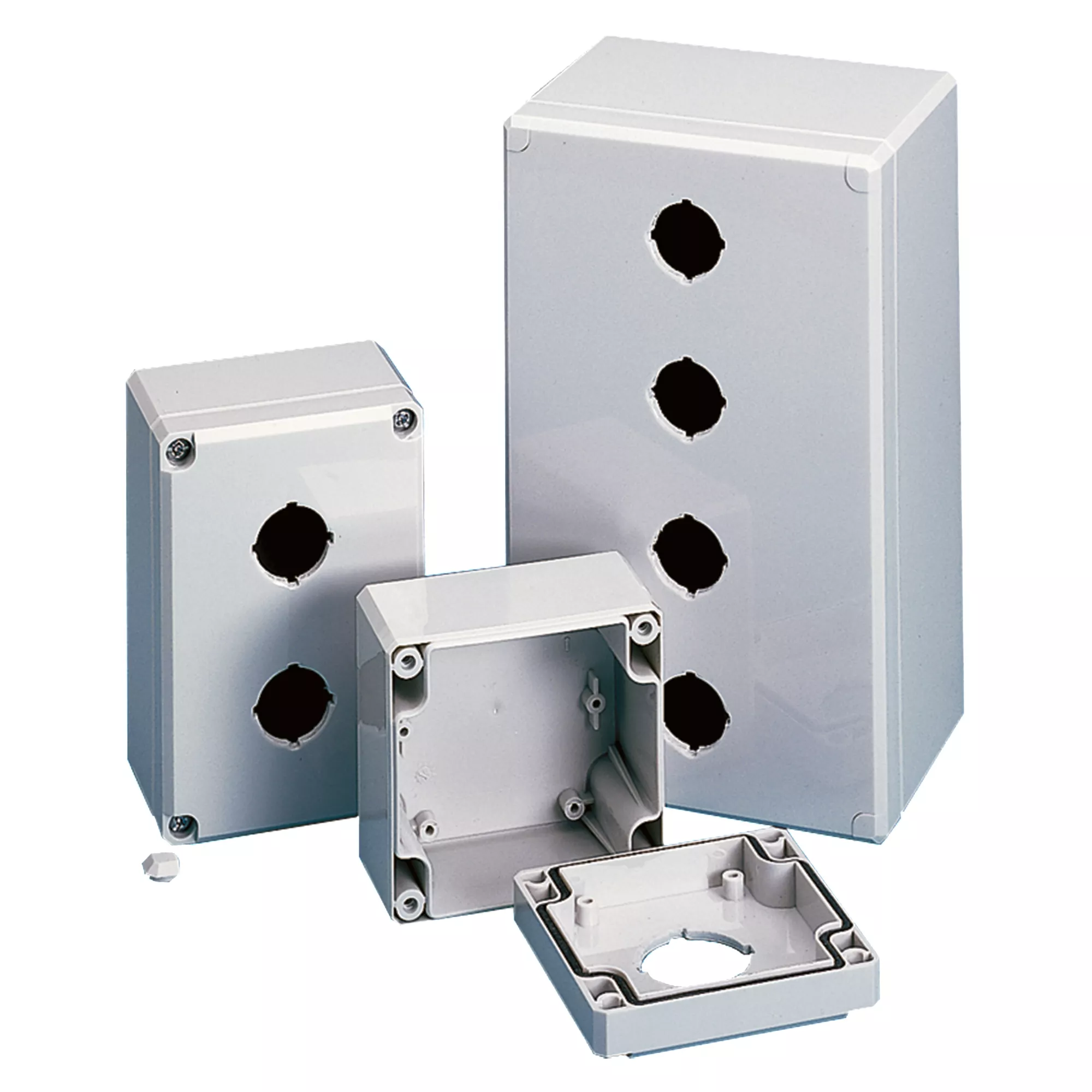

Used for insulating and housing 30.5-mm or 22.5-mm pushbuttons in hostile environments, QLINE D Enclosures have contoured bodies with flush cover screws for an attractive, contemporary appearance.APPLICATIONS:•Mounting holes molded directly adjacent to cover screws•Cross-point captivated cover screws are stainless steel•High-impact polycarbonate material is used for both body and cover•Molded internal pads for mounting optional panels, rails or other components•Cover screws protected by removable caps that are both aesthetic and provide tamper resistance•Seamless foam-in-place gasket assures water-tight and dust-tight seal•Polycarbonate material is easily punched, drilled, filed or sawed•Mounting hardware furnished•Material is halogen free•Screws provided for mounting optional panel•Straight side walls permit ganging of multiple enclosures
High-impact polycarbonate material is used for both body and cover
Polycarbonate material is easily punched, drilled, filed or sawed
Straight side walls permit ganging of multiple enclosures
Cross-point captivated cover screws are stainless steel
Mounting holes molded directly adjacent to cover screws
Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
Molded internal pads for mounting optional panels, rails or other components
Seamless foam-in-place gasket assures watertight and dust-tight seal
Screws provided for mounting optional panel
Optional panels are unpainted plated steel
Specifications
Brand Name
nVent Hoffman
Sub Brand
Qline™ D
Item Name
Enclosure
Type
1 Hole
Width
73 mm
Depth
79 mm
Height
75 mm
Cover Type
Screw
NEMA Rating
NEMA/EEMAC Type 4, 4X, 12, 13, IP67
Series
Qline™ D
Material
Polycarbonate
Finish
Smooth
Color
Gray
For Use With
22.5 mm Pushbutton
Standards
cUL Listed, UL 508A, UL File Number E61997, CSA C22.2 No 94, CSA File Number 42186, IEC 60529
Application
Controls and Drives; Corrosive Environments
UPC
783510150990
