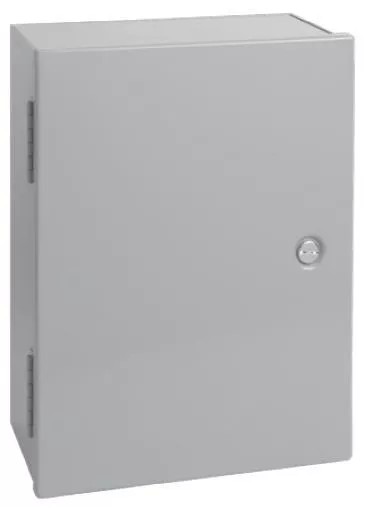

Medium hinged-cover type 1 enclosure box, 14 gauge steel panel, ANSI 61 grey polyester powder paint finish inside and out, Doors have butt hinges, Slotted flush latches, Mounting holes on back of enclosure, Meet basic functionality requirements for applications that do not require oil or dust-tight enclosures.
Butt hinges on door
Collar studs provided for mounting optional panel
Slotted flush latches; optional latches available
Mounting holes on back of enclosure
14 or 12 gauge steel
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Enclosure
Type
Medium, Single Lock, Single Door
Width
406 mm
Depth
168 mm
Height
508 mm
Gauge
14/12
NEMA Rating
NEMA/EEMAC Type 1, IP30
Mounting Type
Wall
Material
Steel
Finish
Powder Coated
Color
Gray
Standards
cUL Listed, UL 50, 50E, UL File Number E27567, CSA C22.2 No. 40, CSA File Number 42184, IEC 60529
Application
For Applications that Do Not Require Oil or Dust-Tight
UPC
783510859602
