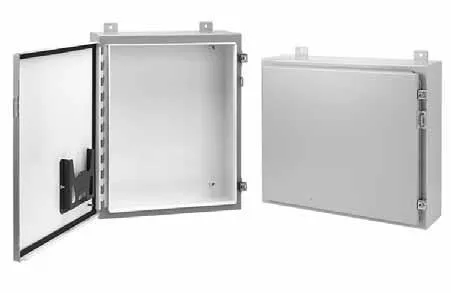

For applications requiring a bright white interior to increase control visibility, this enclosure includes a padlocking hasp and staple for security and screw-down clamps for secure closure.SPECIFICATIONS:-Seams continuously welded and ground smooth-External wall-mounting brackets for easy installation-Formed external return flanges around all sides of enclosure opening-Screw-down door clamps-Removable heavy-gauge continuous hinge pin-Hasp and staple for padlocking-Data pocket is high-impact thermoplastic-Collar studs provided for mounting optional panels-Bonding provision on door-Removable door with continuous hinge-Seamless foam-in-place gasket
Seams continuously welded and ground smooth
External wall-mounting brackets for easy installation
Formed external return flanges around all sides of enclosure opening
Screw-down door clamps
Removable heavy-gauge continuous hinge pin
Hasp and staple for padlocking
Data pocket is high-impact thermoplastic
Collar studs provided for mounting optional panels
Bonding provision on door
Removable door with continuous hinge
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Enclosure
Type
Two Lock, Single Door
Width
406 mm
Depth
203 mm
Height
508 mm
Cover Type
Continuous Hinged with Clamp
Gauge
14 and 16
NEMA Rating
NEMA/EEMAC Type 12, 13, IP65
Material
Steel
Finish
Powder Coat
Color
Gray
Standards
cUL Listed, UL 508A, UL File Number E61997, CSA C22.2 No. 94, CSA File Number 42186, IEC 60529
Application
For Applications Requiring a Bright White Interior to Increase Control Visibility
UPC
783510281601
