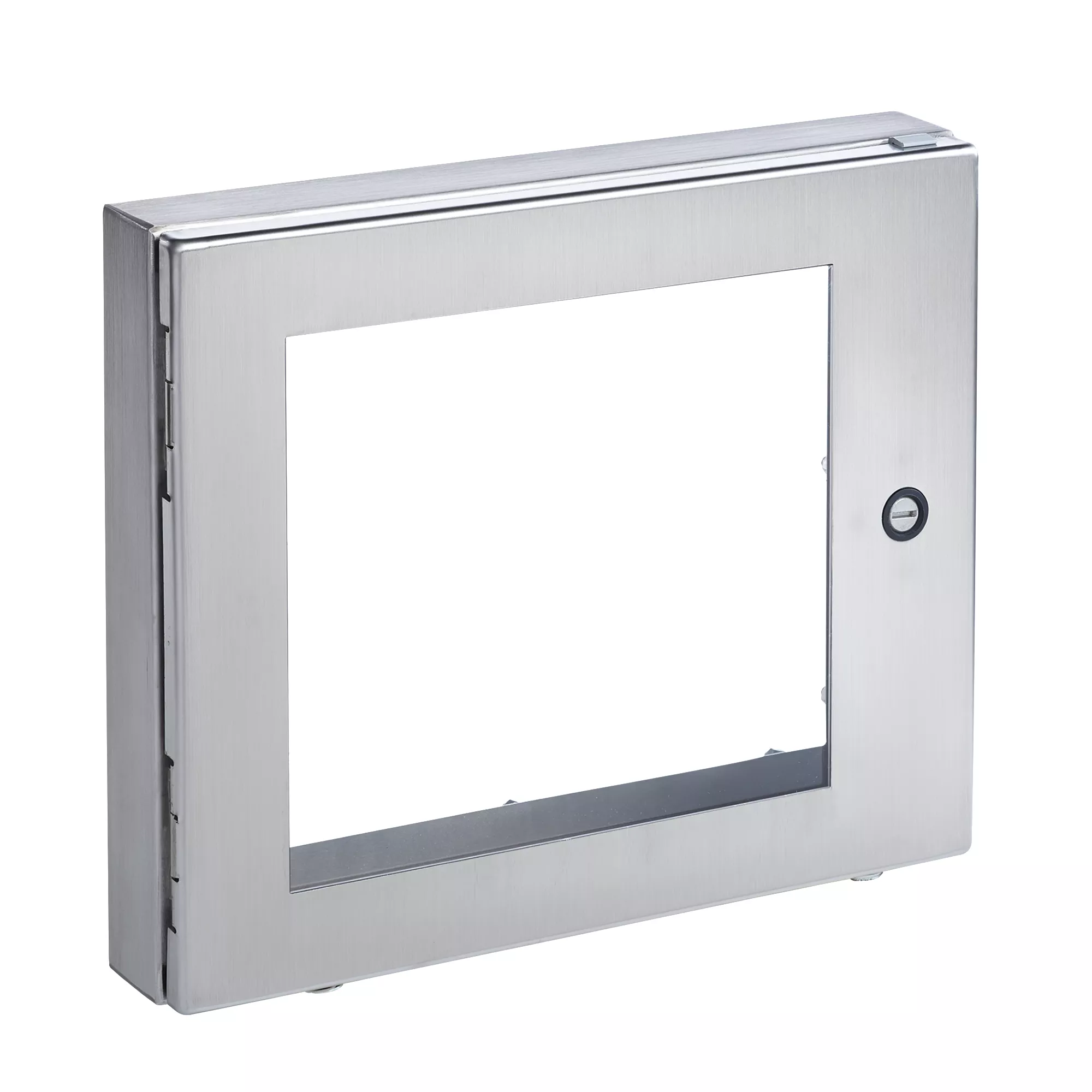

Deep-hinged Window Kit, Bulletin A80sw (stainless Steel Window Kits), Size/dims: 22.19 X 16.14, Material/finish: Ss Type 316
Quarter-turn latches for quick access
0.25-in. (6-mm) thick, clear polycarbonate windows for easy viewing
2.5-in. (64-mm) deep to allow for deep controls
Built-in gasket compression stop on back of window kit facilitates flush mounting
Designed for either left or right hinging
Includes mounting template and mounting hardware
Easy-to-remove clip-style hinge pin
Optional Concept handles can be purchased separately to replace the standard quarter-turn latches
Specifications
Brand Name
Hoffman
Sub Brand
Hoffman
Item Name
Window Kit
Type
Deep-Hinged
Length
22.19 in
Width
16.14 in
Depth
2.73 in
Material
Stainless Steel
Thickness
1.9 mm
Finish
Brushed
Standards
12, 4, 4X, cUL Listed Per CSA C22.2 File No. E61997, IEC 60529, IP66Mild Steel, NEMA/EEMAC Type 3R, No. 94 Stainless Steel Type 3R Type 4 UL 508A Listed
Application
For Controls and Drives, Corrosive Environments, Power Distribution
UPC
783510130176
