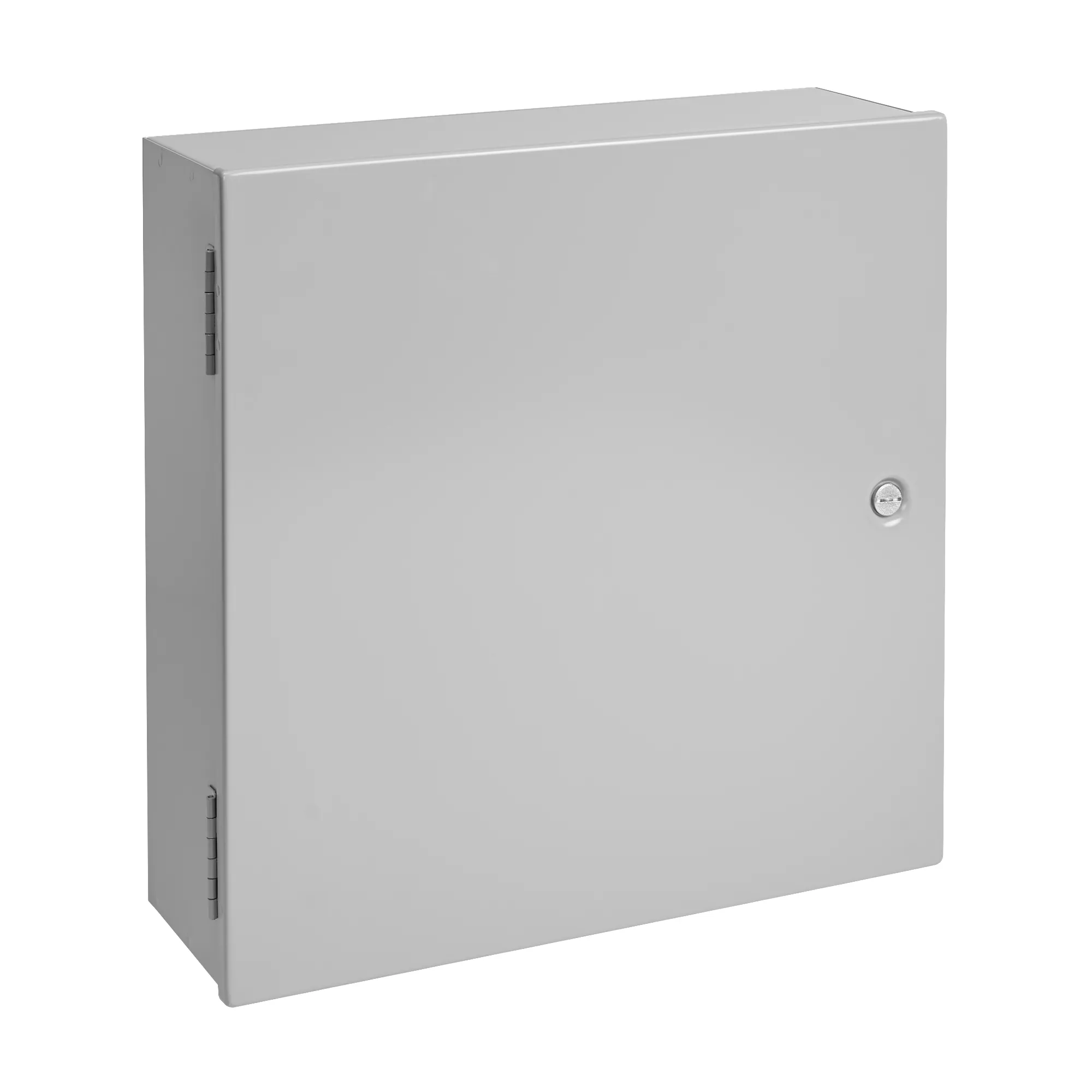

Medium hinged-cover type 1 enclosure box, 12 gauge steel panel, ANSI 61 grey polyester powder paint finish inside and out, Doors have butt hinges, Slotted flush latches, Mounting holes on back of enclosure, Meet basic functionality requirements for applications that do not require oil or dust-tight enclosures.
Butt hinges on door
Collar studs provided for mounting optional panel
Slotted flush latches; optional latches available
Mounting holes on back of enclosure
14 or 12 gauge steel
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Enclosure
Type
Single Door, Single Lock, Medium
Width
24 in
Depth
6.62 in
Height
24 in
Gauge
14 or 12
NEMA Rating
NEMA 1, IP30
Mounting Type
Wall
Material
Steel
Finish
Powder Coated
Color
Gray
Standards
UL 50, 50E Listed File Number E27567, cUL Listed, CSA C22.2 No 40 File Number E27567, CSA File 42184 IEC 60529
Application
Controls and Drives; Power Distribution
UPC
783510860004
