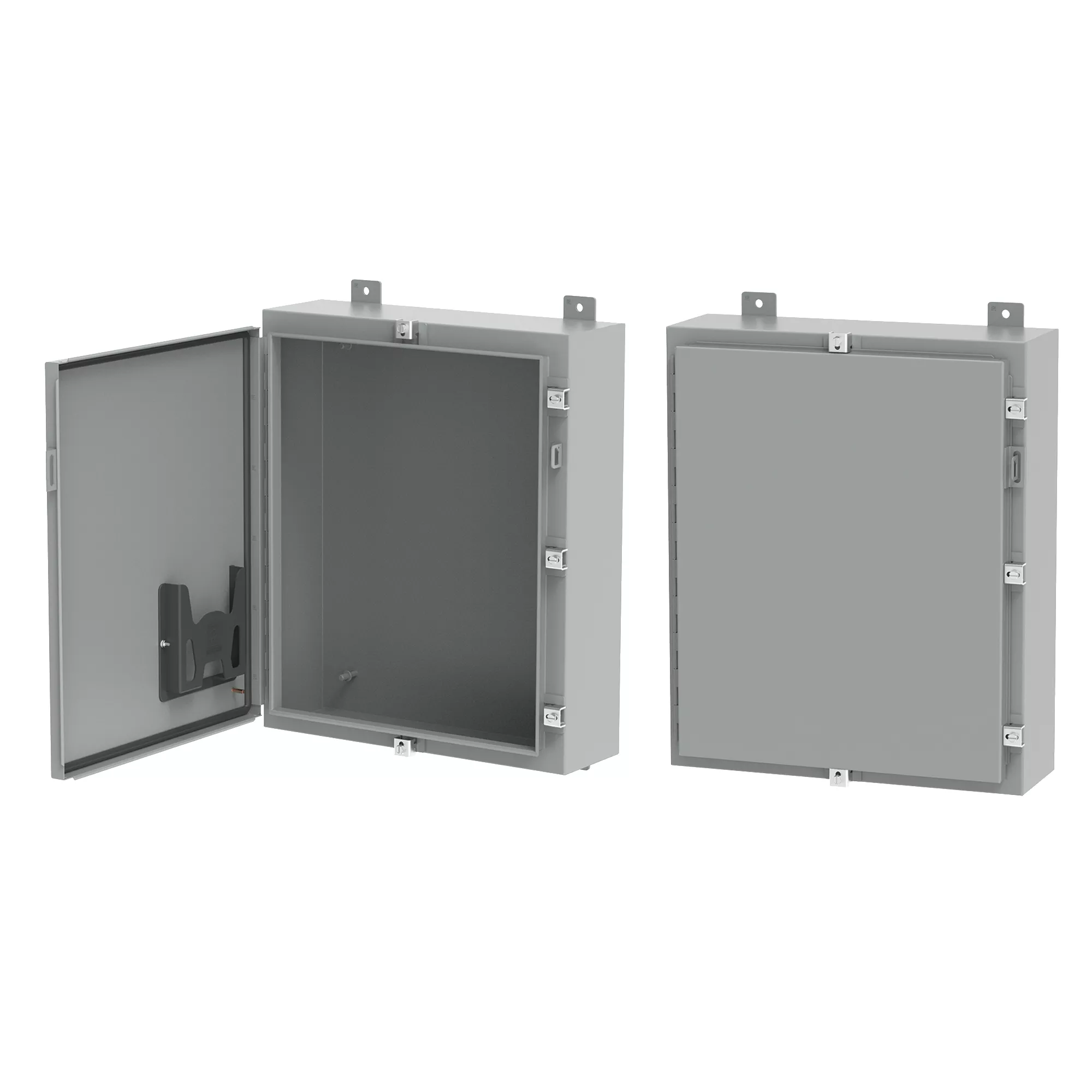

Wall-mount enclosures, continuous hinge with clamps, type 4. Seams continuously welded and ground smooth. 14 gauge steel. External wall-mounting brackets. Formed external flanges around all sides of enclosure opening. Stainless steel door clamps on three sides of door. Removable heavy gauge stainless steel continuous hinge pin. Hasp and staple provided for padlocking. Data pocket is high-impact thermoplastic. Collar studs provided for mounting optional panels. Bonding provision on door. Finish: ANSI 61 grey polyester powder paint inside and out.
Seams continuously welded and ground smooth
External wall-mounting brackets for easy installation
Formed external flanges around all sides of enclosure opening
Stainless steel screw-down clamps on three sides of door
Removable heavy gauge stainless steel continuous hinge pin
Removable door with continuous hinge for strength and ruggedness
Hasp and staple provided for padlocking
Data pocket is high-impact thermoplastic
Collar studs for mounting optional panels
Bonding provision on door
Specifications
Brand Name
Hoffman
Sub Brand
Hoffman
Item Name
Enclosure with Clamp
Type
1-Door, Continuous Hinge
Width
30 in
Depth
10 in
Height
48 in
Gauge
14 ga
NEMA Rating
12 Indoor, Dust-Resistant
Mounting Type
Wall
Material
Steel
Finish
Polyester Powder-Coated
Color
ANSI 61 Gray
Standards
UL 508A Listed, Type 4, 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 4, 12, 13, File No. E61997, NEMA/EEMAC Type 3, 4, 12, and 13, CSA, File No. 42186:Type 4 and 12, IEC 60529, IP66
Application
For Controls and Drives, Power Distribution
UPC
783510246808
