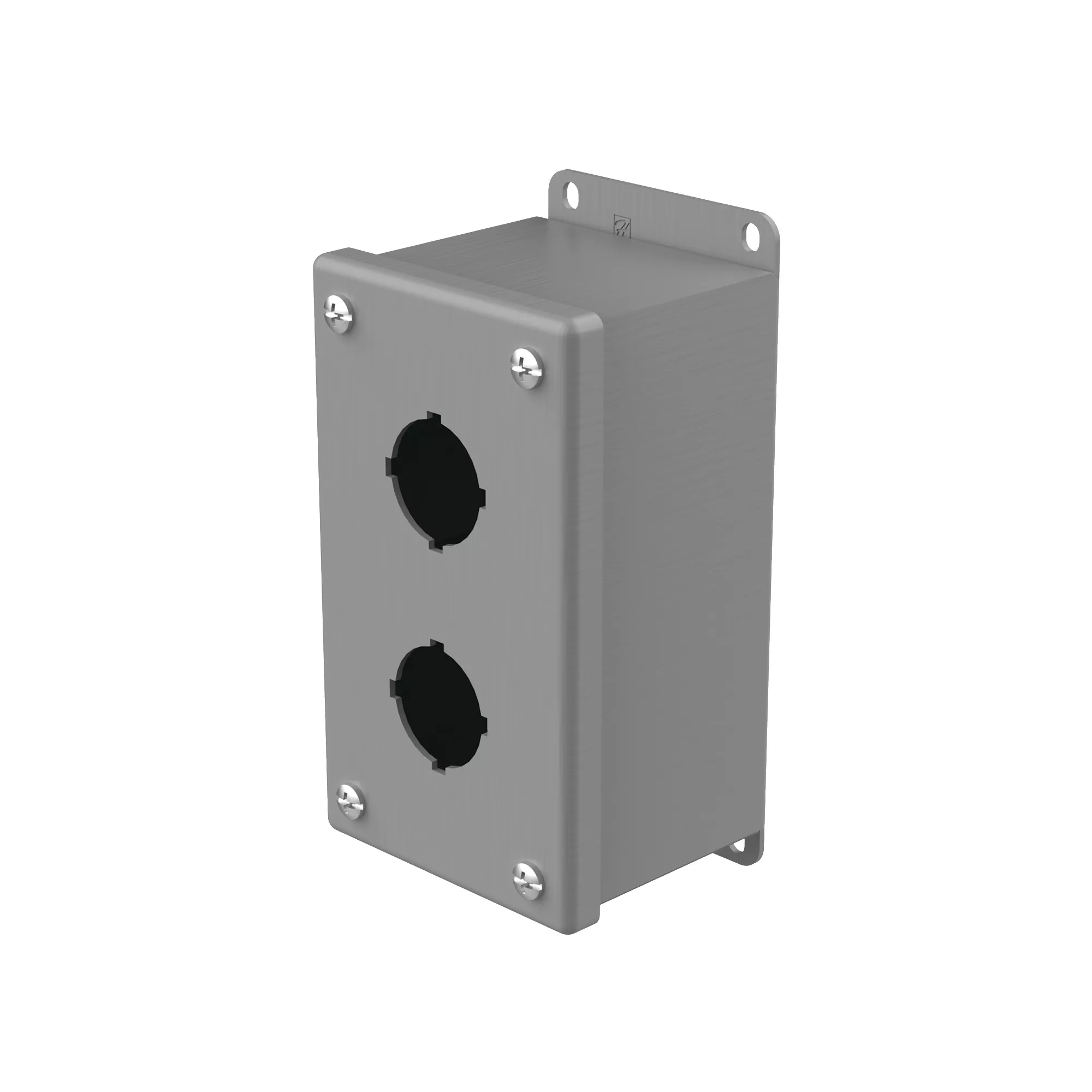

APPLICATION:These pushbutton enclosures are designed to hold 30.5-mm or22.5-mm pushbuttons and switches.SPECIFICATIONS• 16 or 14 gauge steel• Seams continuously welded and ground smooth• Captivated cover screws thread into sealed wells• Bonding provision on cover• Grounding stud on body• Oil-resistant gasket• Factory stamped 4-way pushbutton holes• Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring• External welded-on mounting brackets for easy installation• 30.5-mm or 22.5-mm size holes
Seams continuously welded and ground smooth
Captivated cover screws thread into sealed wells
Bonding provision on cover
Grounding stud on body
Oil-resistant gasket
Factory stamped 4-way pushbutton holes
Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
External welded-on mounting brackets for easy installation
30.5-mm or 22.5-mm size holes
30.5-mm or 22.5-mm size holes
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Enclosure
Type
2 Holes
Width
83 mm
Depth
70 mm
Height
146 mm
Cover Type
Screw
Gauge
14 and 16
NEMA Rating
NEMA/EEMAC Type 12, 13, IP65
Material
Steel
Finish
Powder Coat
Color
Gray
For Use With
30.5 mm or 22.5 mm Pushbuttons and Switches
Standards
cUL Listed, UL 508A, UL File Number E61997, CSA C22.2 No. 94, CSA File Number 42186, IEC 60529
Application
Controls and Drives
UPC
783510580209
