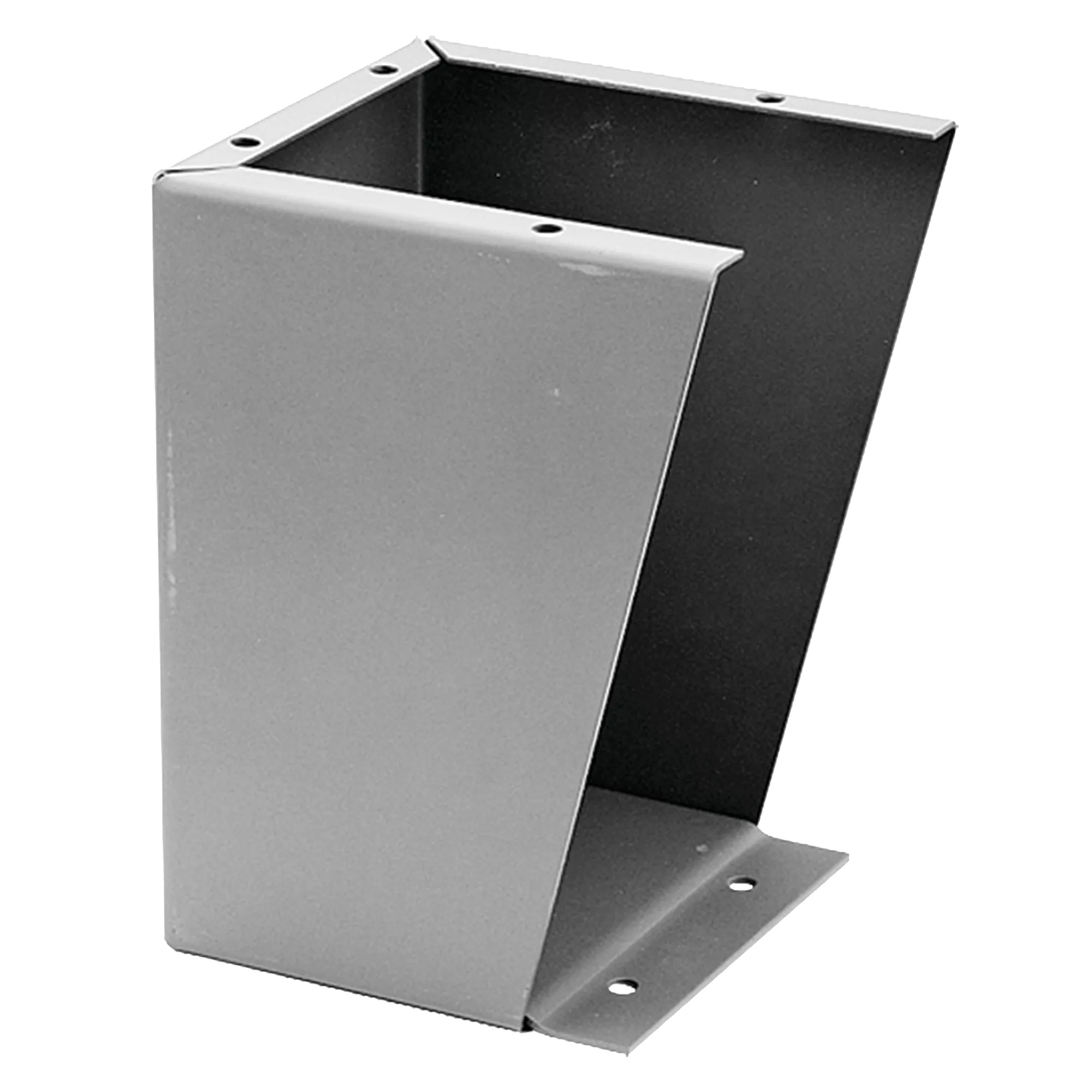

Floor stand kit are easily installed on most wall-mount enclosures. Can also be used to elevate free-stand enclosures. To install, drill holes in the bottom of the enclosure and bolt the floor stands to the enclosure. It is not necessary to remove the wall mount brackets from the enclosure. 12 gauge steel floor stand has an ANSI 61 grey polyester powder finish over pretreated surfaces.
Each kit includes two stands
Two sets of floor stands are recommended for enclosures larger than double door Free-Stand enclosures
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Floor Stand Kit
Type
Mounting Accessories
Size
408 mm W x 206 mm D x 305 mm H
Material
12 ga 304 Stainless Steel
Color/Finish
ANSI 61 Gray/Polyester Powder Coated
Mounting
Wall
Standards
ANSI 61, UL Listed, CSA Certified, NEMA Type 4, 4X, 12
Application
For Hoffman Free-Stand Enclosures, To Install, Drill Holes in Bottom of the Enclosure and Bolt Floor Stands to Enclosure
UPC
783510256401
