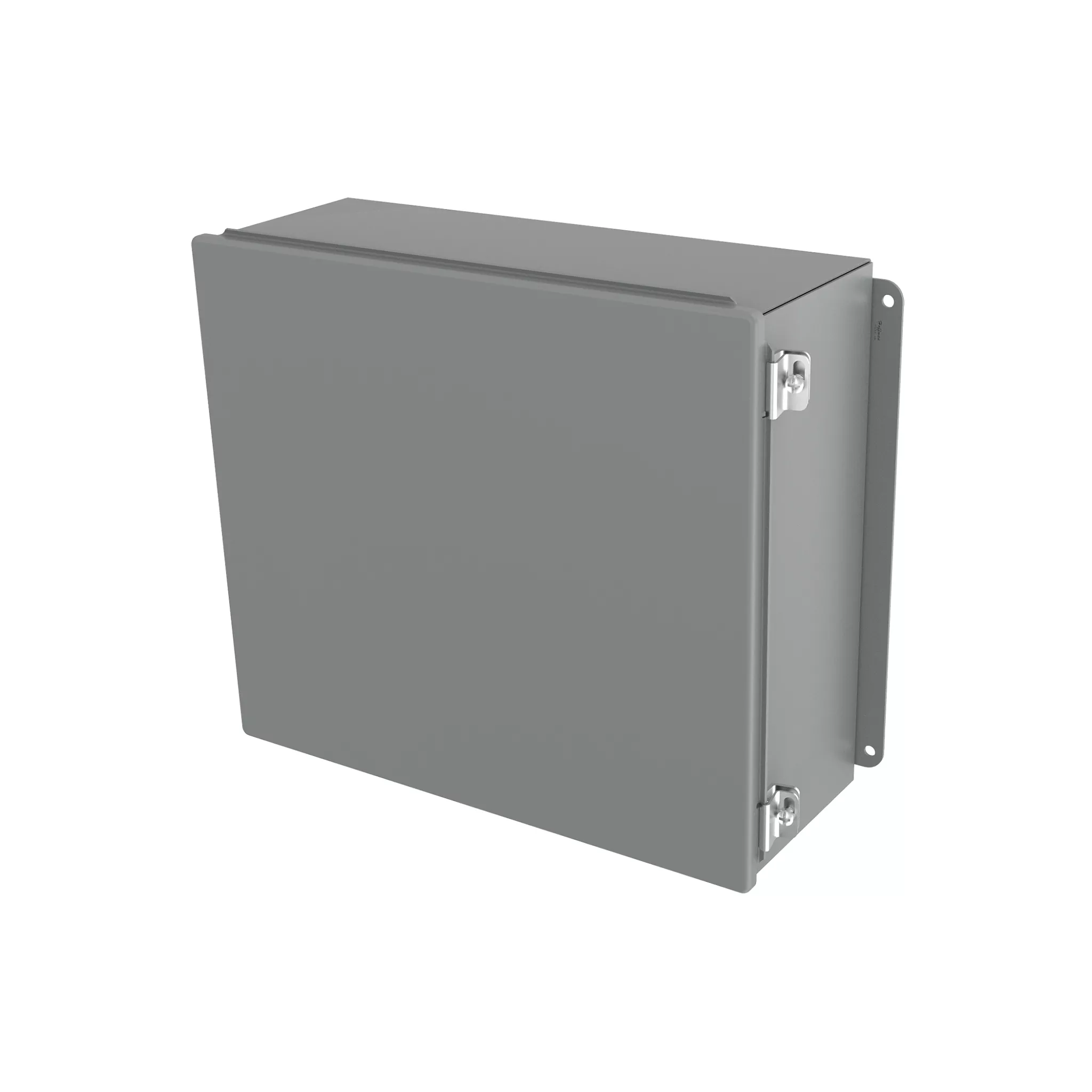

ONE DOOR; HEIGHT 10 INCH; WIDTH 8 INCH; DEPTH 4 INCH; STEEL; MATERIAL SPECIFICATION 14 GAUGE; ANSI 61 GRAY; POLYESTER POWDER COATED OVER PHOSPHATIZED SURFACE; CONTINUOUS HINGE, GASKETED, SCREW CLAMP COVER; BACK PANEL A-10P8; NEMA 12/13, IP65; EXTERNAL FEET MOUNTING; APPROVAL UL 50, CSA, JIC; HOFFMAN[R] BRAND; APPLICABLE STANDARD IEC 60529; APPLICATION ELECTRICAL JUNCTION BOX, INSTRUMENT, TERMINAL WIRING BOX; ENVIRONMENTAL CONDITIONS DIRT, DUST, OIL, WATER
Seams continuously welded and ground smooth
Continuous hinge
Screw-down door clamps
Bonding provision on door
External wall-mounting brackets for easy installation
Oil-resistant gasket
Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Enclosure
Type
Mild Steel Industrial Terminal and Junction Boxes
Width
8 in
Depth
4 in
Height
10 in
Cover Type
Continuous Hinge, Screw Clamp Cover
NEMA Rating
NEMA 12, 13
Material
Steel
Finish
Powder Coat
Color
ANSI 61 Gray
Standards
UL 50, 50E Listed, Type 12, 13, File No. E27567, cUL Listed per CSA 22.2 No. 94, Type 12, 13, File No. E27567, UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA 22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12 and 13
Application
Controls and Drives
UPC
783510555108
