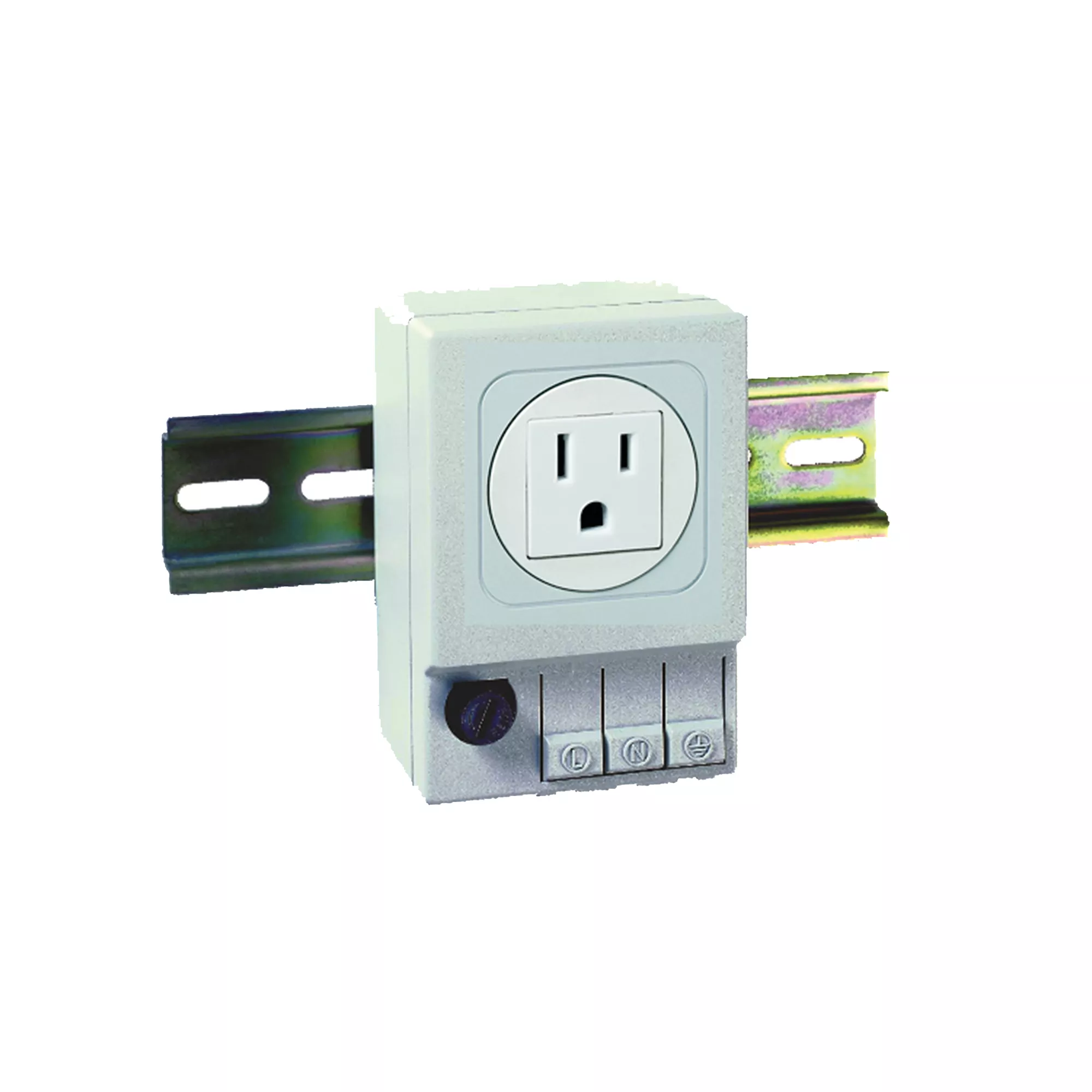

The DIN rail-mounted NEMA 5-15P electrical receptacle can be quickly fitted and connected inside enclosures, allowing the use of auxiliary products such as hand lamps and power tools. The unit is available with and without fuses.
Connection: three cage clamps for solid and stranded wire AWG 20-14 (0.5-2.5mm&178;)
Housing: plastic, UL94 V-0, light grey
Fuse: Type 5 x 20 mm dia. (Tubular)
Integral mounting clip for 35mm DIN rail, EN 60 715
Mounting position: vertical
Operating / storage temperature -49 F to +158 F (-45 C to 70 C)
Standard NEMA receptacle 5-15R
Protection class I (grounded)
Fuse: Type 5 x 20 mm dia. (Tubular)
Integral mounting clip for 35mm DIN rail, EN 60 715
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Type
Electrical Accessories
Material
Plastic
Standards
UL Component Recognized, File No. E222026, cUL Component Recognized, File No. E222026, Ingress protection: IP 20
Application
Controls and Drives; Power Distribution
UPC
783510260941
