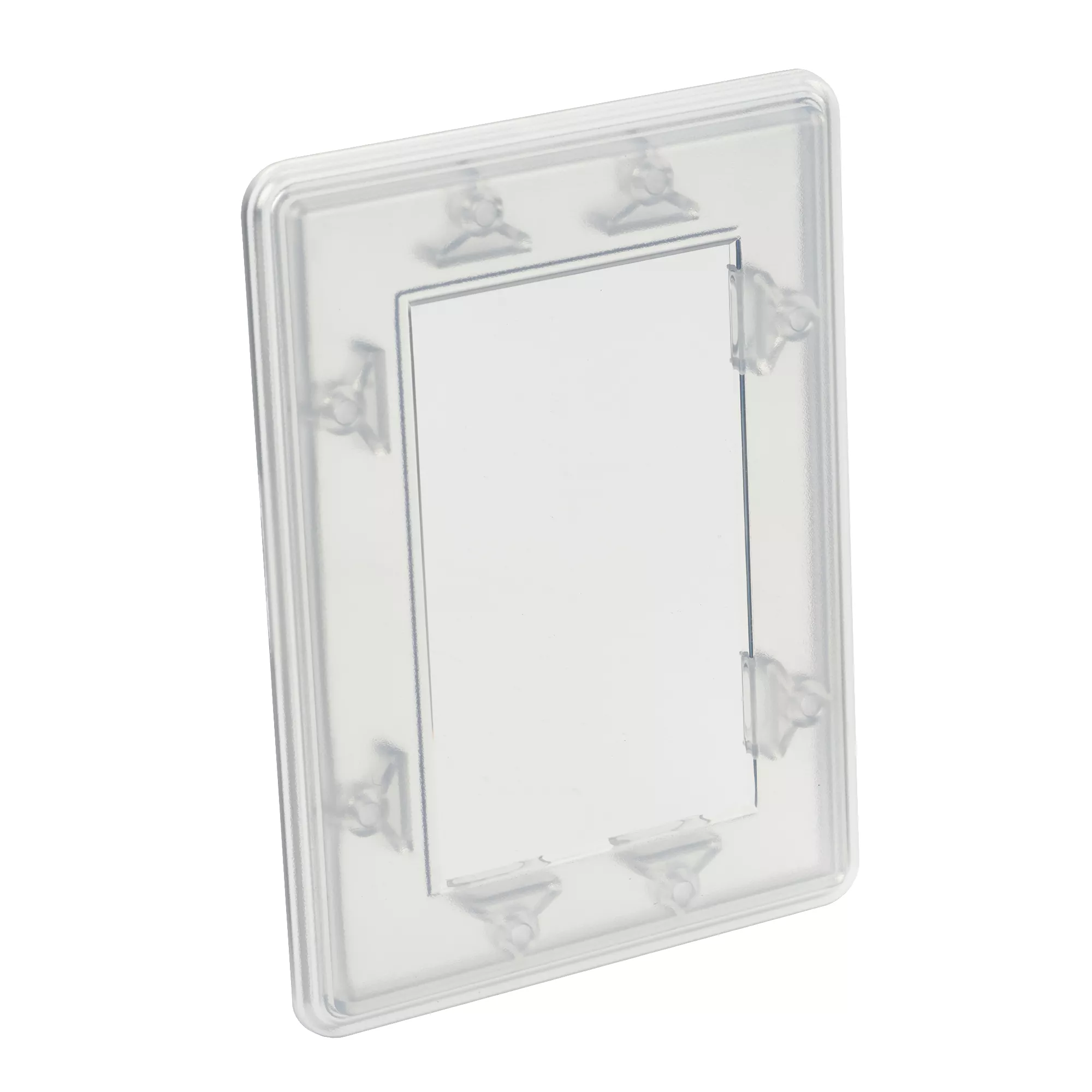

Create a viewing window on enclosure doors using these window kits. This Window Kit Type 4 4X 12, APWK53NFNM item measures 5.00×3.00 inches with a material of Polycarbonate finish Transparent.
Window kits of the same size use the same interchangeable cut-out
The gasket material on all windows is resistant to oils, cutting fluids and many other liquids
All required hardware is furnished, along with assembly and cut- out instructions
The clear window of the Steel and Stainless Steel Window Kit is made of .25-in. (6mm) impact-resistant polycarbonate material
Non-Metallic Window kit are made of a single piece polycarbonate material
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Window Kit
Type
Non-Metallic
Length
7.62 in
Width
5.62 in
Depth
0.63 in
Material
Polycarbonate
Series
A80SW/A80W
Thickness
3 mm
Color
Transparent
Finish
Transparent
Enclosure Type
NEMA 3R, 4X, 12, 13, IP66
For Use With
7.62 in W x 5.62 in H Window Enclosure
Standards
File No. 42186 UL 508A, UL 746C Listed, CSA Certified
Application
For Controls, Drives, Corrosive Environments, Power Distribution, Indoor and Outdoor Applications
UPC
783510271855
