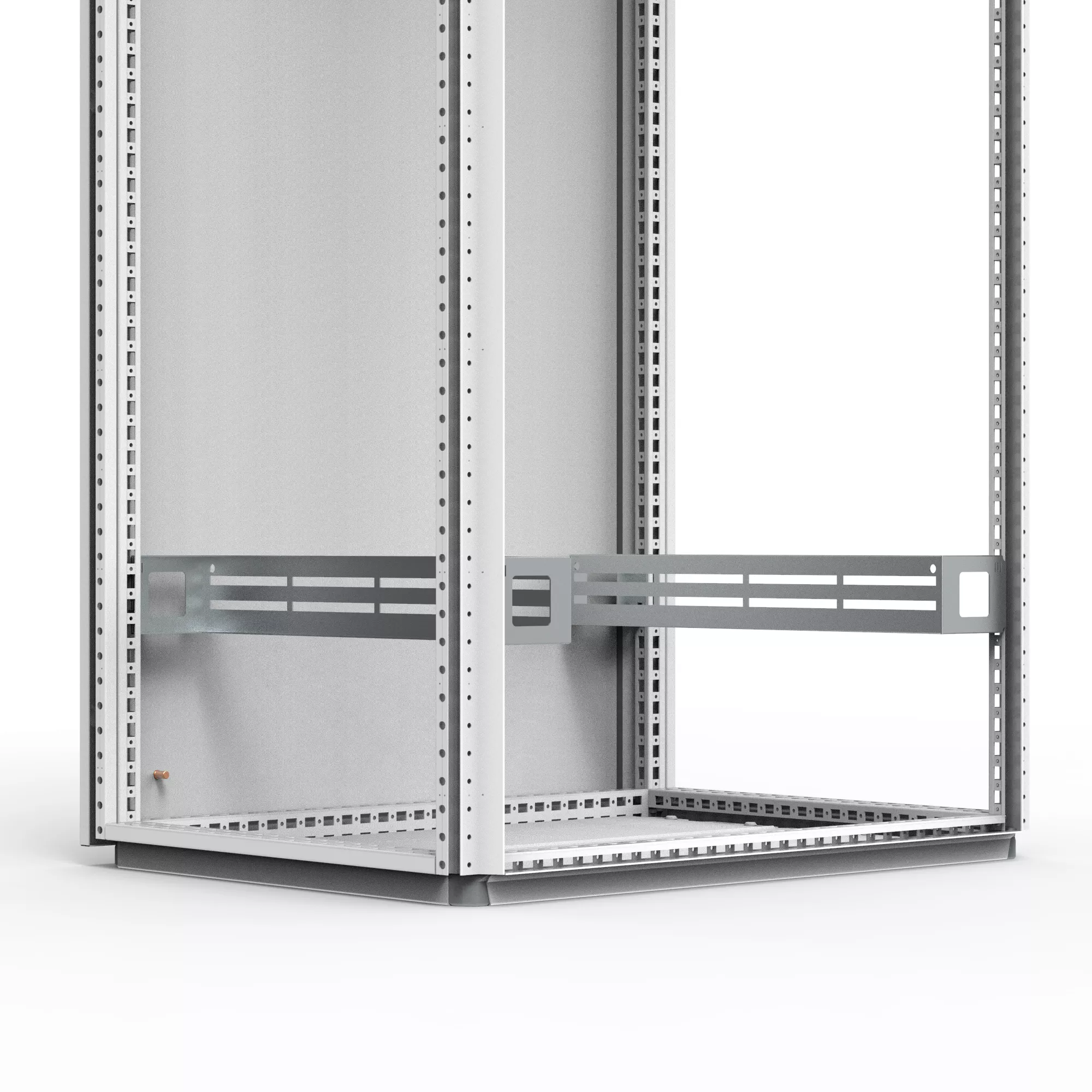

19-Inch Width Reducers, CIWR are used in 800mm wide enclosures at partial or full height, for mounting 19-in profiles. This 19-Inch Width Reducers, CIWR, CIWR8198 item measures 80x761x100mm with a material of Mild Steel, color Light Gray.
Description: Used to obtain 19″ mounting facilities in 800 mm wide enclosures.Allows the mounting of CIP/CIPP profiles on partial or full height at any depth.
Material: 1.5 mm zinc plated steel.
Maximum load: Maximum supported weight is 5000N on 2 pair of CIWR and 8000N on 3 pair of CIWR.
Pack quantity: 1 pair with mounting accessories.
Maximum load: Maximum supported weight is 5000N (1124) on 2 pair of CIWR and 8000N (180) on 3 pair of CIWR
Specifications
Brand Name
nVent Hoffman
Material
Steel
Type
IEC Enclosure Accessories
Color
Unpainted
Finish
Zinc
Application
Controls and Drives; Factory Automation and Process Control
UPC
783510459017
