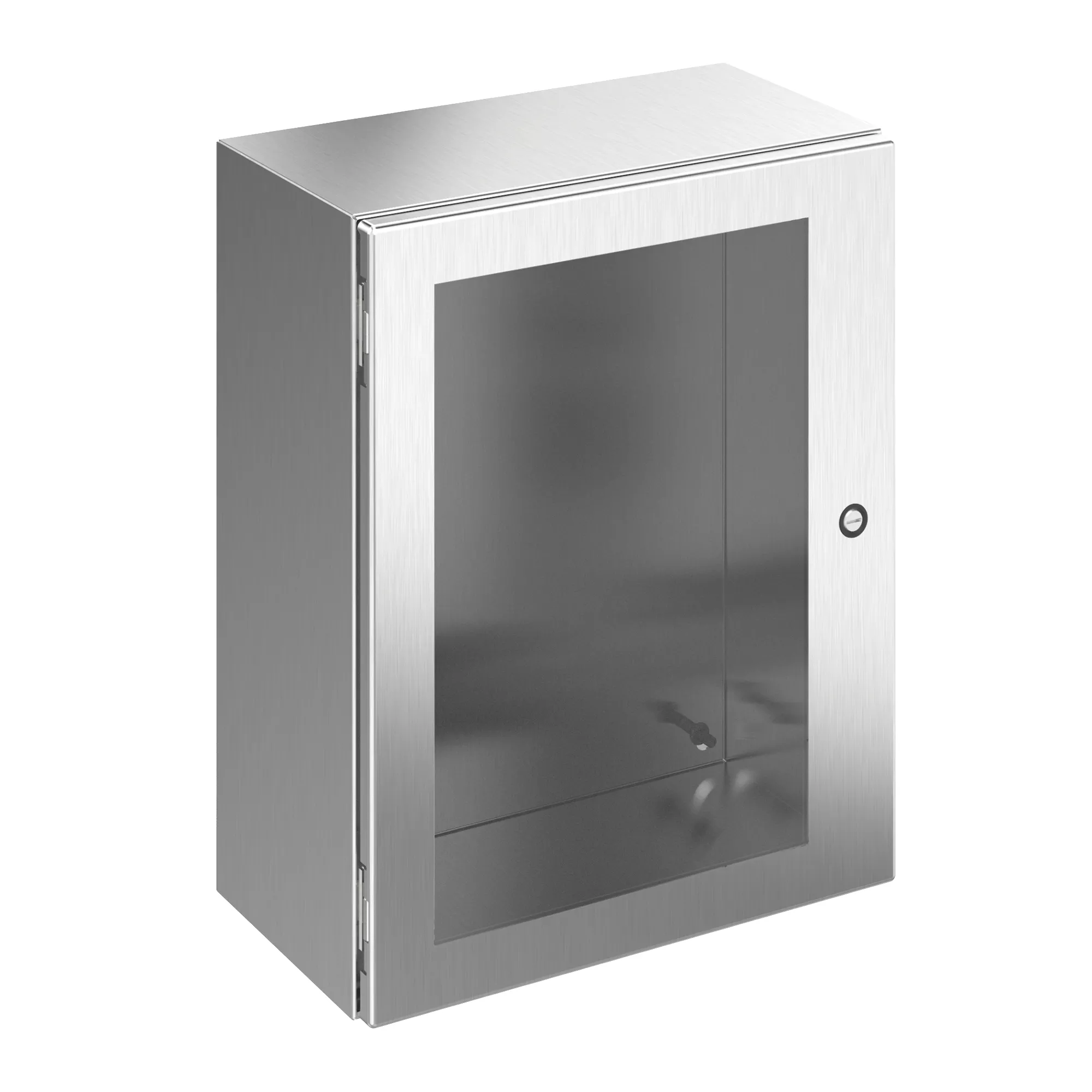

CONCEPT™ wall-mounted enclosure made of stainless steel. quarter-turn latching style. External formed 90° body flange. Panel mounting studs fit optional CONCEPT panels and other accessories. Mounting holes in back of body for direct mounting or for optional external mounting brackets. Bonding provision on door; grounding stud on body. Furnished hardware kit consists of panel-mounting nuts, panel grounding hardware and sealing washers for wall-mounting holes.
Window pre-mounted in door of enclosure.
Minimum-width body flange provides maximum body opening
External formed 90-degree body flange
Panel mounting studs fit optional Concept panels and other accessories
Mounting holes in back of body for direct mounting or for optional external mounting brackets
Type 316 stainless steel hidden hinges promote clean aesthetic appearance
Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
Quarter-turn latches furnished with flush slotted insert
Seamless foam-in-place gasket
Self-grounding latch system with double seal
Specifications
Brand Name
Hoffman
Sub Brand
Concept
Type
Stainless Steel Wall Mounted Industrial Enclosures
Width
12 in
Depth
6 in
Height
12 in
NEMA Rating
4X Watertight, corrosion-resistant
Material
304 Stainless Steel
Finish
Brushed
Color
Unpainted
Standards
Mounting brackets required to meet UL/CSA external mounting requirements., UL 508A Listed, Type 3R, 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 3R, 4, 4X, 12, File No. E61997, NEMA/EEMAC Type 3R, 4, 4X, 12, 13, CSA File No. 42186: Typ
Application
Controls and Drives; Corrosive Environments
UPC
783510116606
