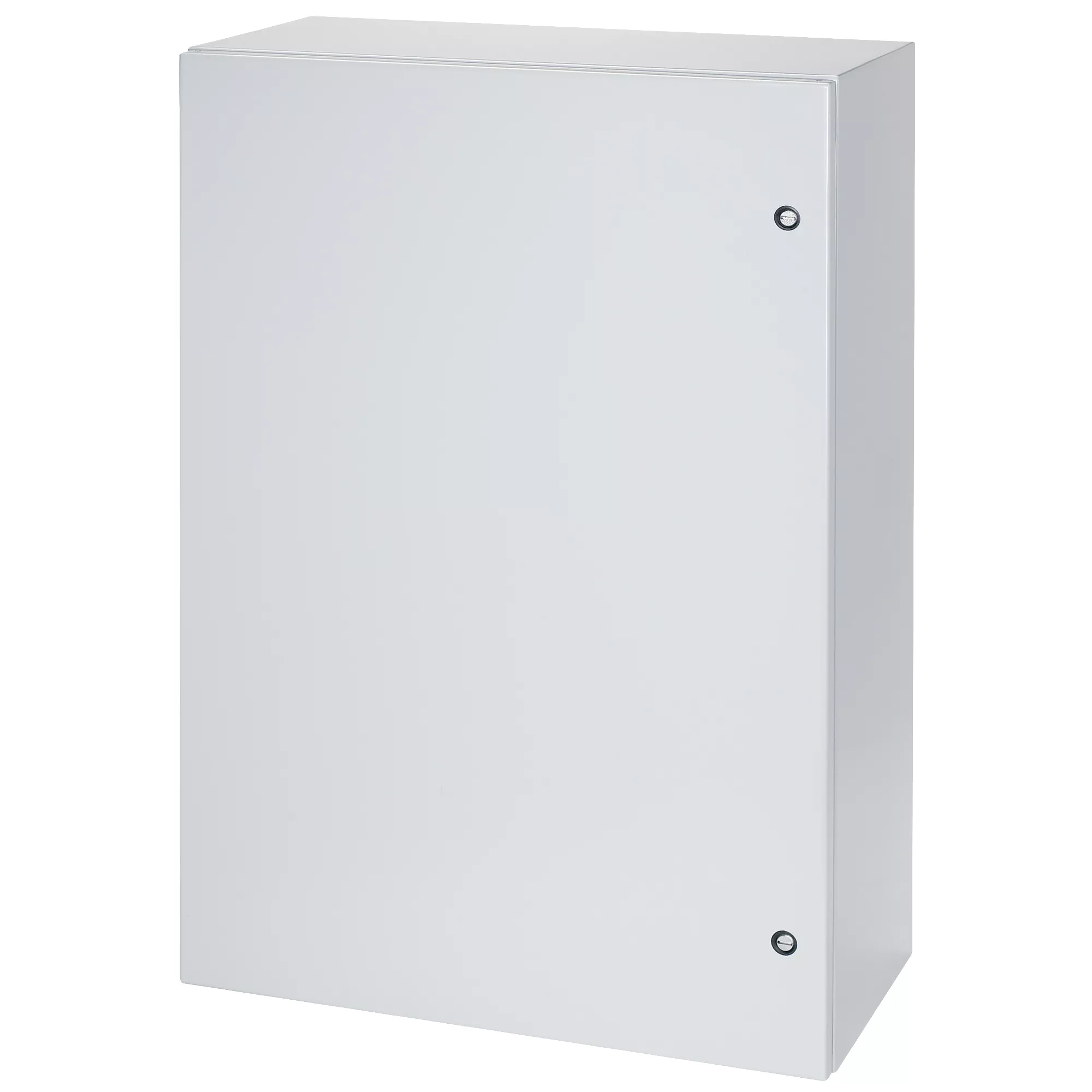

Concept Enclosures are ideal for machine control applications. This Concept Single-Door Enclosure, CSD241210 item measures 24.00×12.00×10.00 inches with a material of Steel colored Gray.
Seams continuously welded and ground smooth
Corner-formed doors
Simple easy-to-remove and install hinge pins with built-in captivation clip
High-torque threadless studs and fasteners on door
Minimum-width body flange provides maximum door opening (210 degrees)
Door opens 210 degrees
External formed body flange
Panel mounting studs fit optional Concept panels and other accessories
Mounting holes in back of body for optional external wall-mount brackets
Removable door with hidden hinges for clean, aesthetic appearance
Specifications
Brand Name
nVent Hoffman
Sub Brand
Concept
Item Name
Enclosure
Type
Single Latch, Dust-Resistant
Width
12 in
Depth
10 in
Height
24 in
Cover Type
Quarter Turn Latch
Gauge
16 ga Door and Body
NEMA Rating
NEMA 12
Mounting Type
Wall
Material
Steel
Finish
Powder Coated
Color
Gray
Standards
CSA Certified in File Number 42186: Type 4, 12, CUL Listed Per CSA C22.2 No. 94, Type 4, 12, File Number E61997, IEC 60529, IP66 Rated, NEMA/EEMAC Type 4, 12, 13, UL 508A Listed, Type 4, 12, File Number E61997, VDE
Application
Controls and Drives, Indoor
UPC
783510294014
