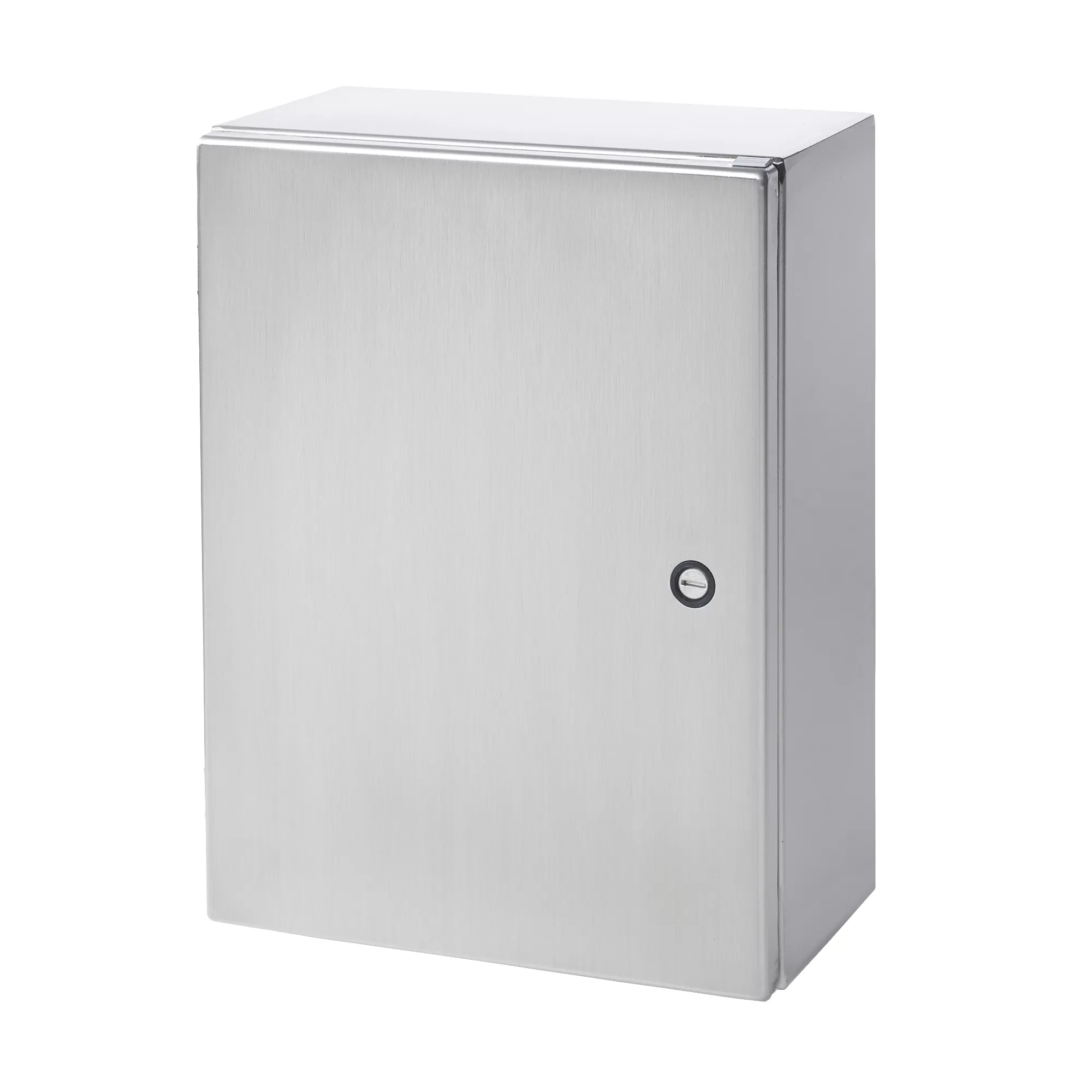

Concept SS enclosures are designed for indoor or outdoor applications in corrosion environments. This Concept Wallmount 1/4-Turn Latch Type 4X, CSD242416SS item measures 24x24x16 inch with a material of Stainless 304 finish Brushed.
Minimum-width body flange provides maximum body opening
External formed 90-degree body flange
Panel mounting studs fit optional Concept panels and other accessories
Mounting holes in back of body for direct mounting or for optional external mounting brackets
Type 316 stainless steel hidden hinges promote clean aesthetic appearance
Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
Provision on door (except when B = 12 inch (305mm)) for thermoplastic data pocket
Provision on door (except when B = 12 inch (305mm)) for optional doorstop kit
Quarter-turn latches furnished with flush slotted insert
Seamless foam-in-place gasket
Specifications
Brand Name
nVent Hoffman
Item Name
Enclosure
Type
Dust-Resistant
Width
24 in
Depth
16 in
Height
18.50 in
Cover Type
Quarter Turn Latch
Gauge
1.98 mm Body
NEMA Rating
NEMA 12
Mounting Type
Wall
Material
Stainless Steel
Finish
Brushed
Application
Controls and Drives, Corrosive Environments, Indoor
UPC
783510345624
