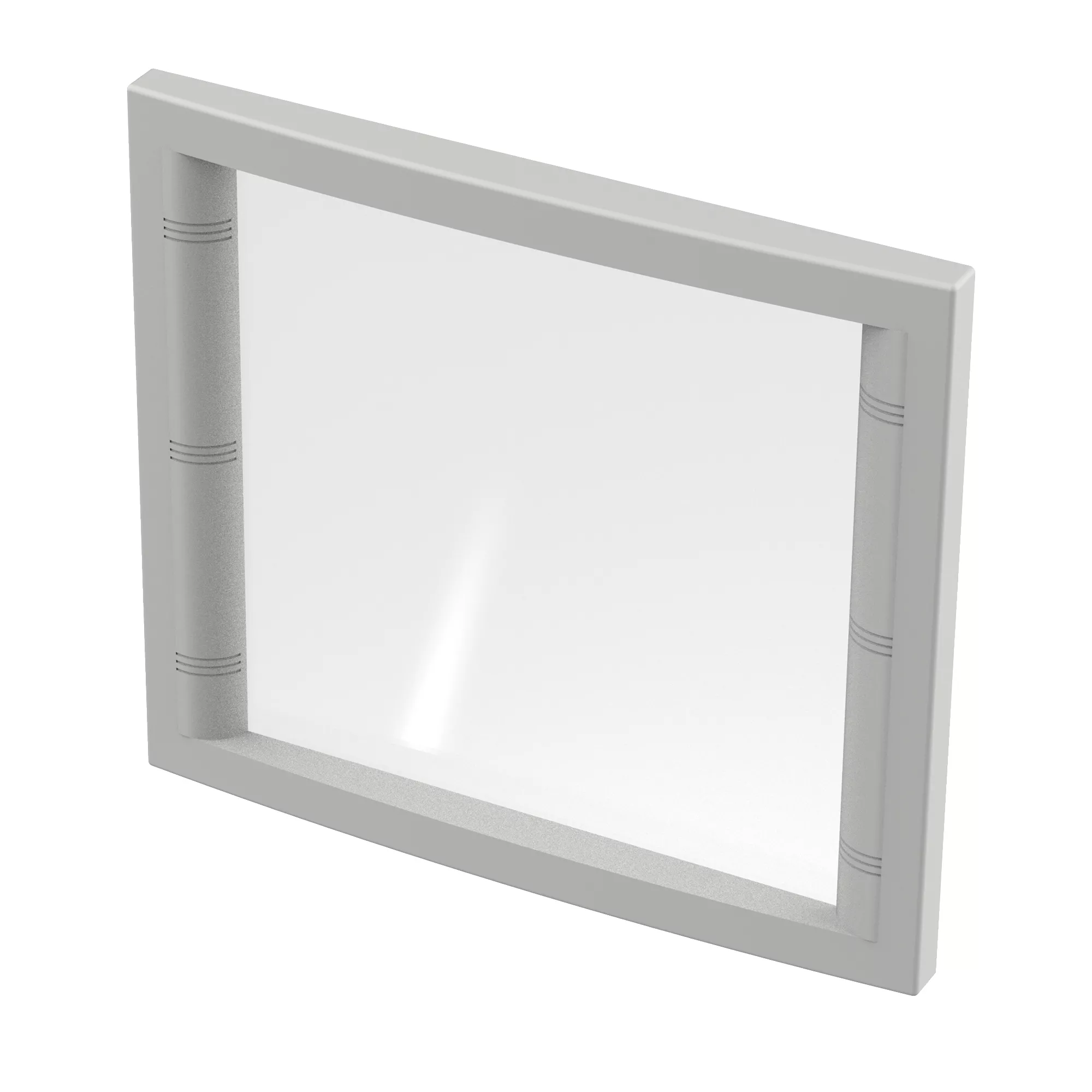

Concept fixed window kit can be used as a viewing window on larger standard nVent HOFFMAN enclosure doors. Pre-assembled kit is secured to front opening of enclosure by mounting screws.
Aesthetic die-cast aluminum frame
0.188-in. (5-mm) thick, clear polycarbonate window
Furnished window frame caps conceal mounting screws
Specifications
Brand Name
nVent Hoffman
Sub Brand
Concept
Item Name
Window Kit
Type
Fixed
Length
15-3/4 in
Width
17.72 in
Depth
1.3 cm
Material
Die-Cast Aluminum/Polycarbonate
Thickness
1.3 in
Color
Light Gray
Finish
RAL 7035
Enclosure Type
NEMA Type 4 and 12, IEC 60529, IP66
For Use With
400 mm L x 450 mm W x 33 mm D Operator Interface Enclosure
Includes
Mounting Hardware
Standards
RoHS Compliant, UL 508A, 508, File Number E61997, CSA File Number LR42186: Type 4 and Type 12
Application
Controls and Drives
UPC
783510156893
