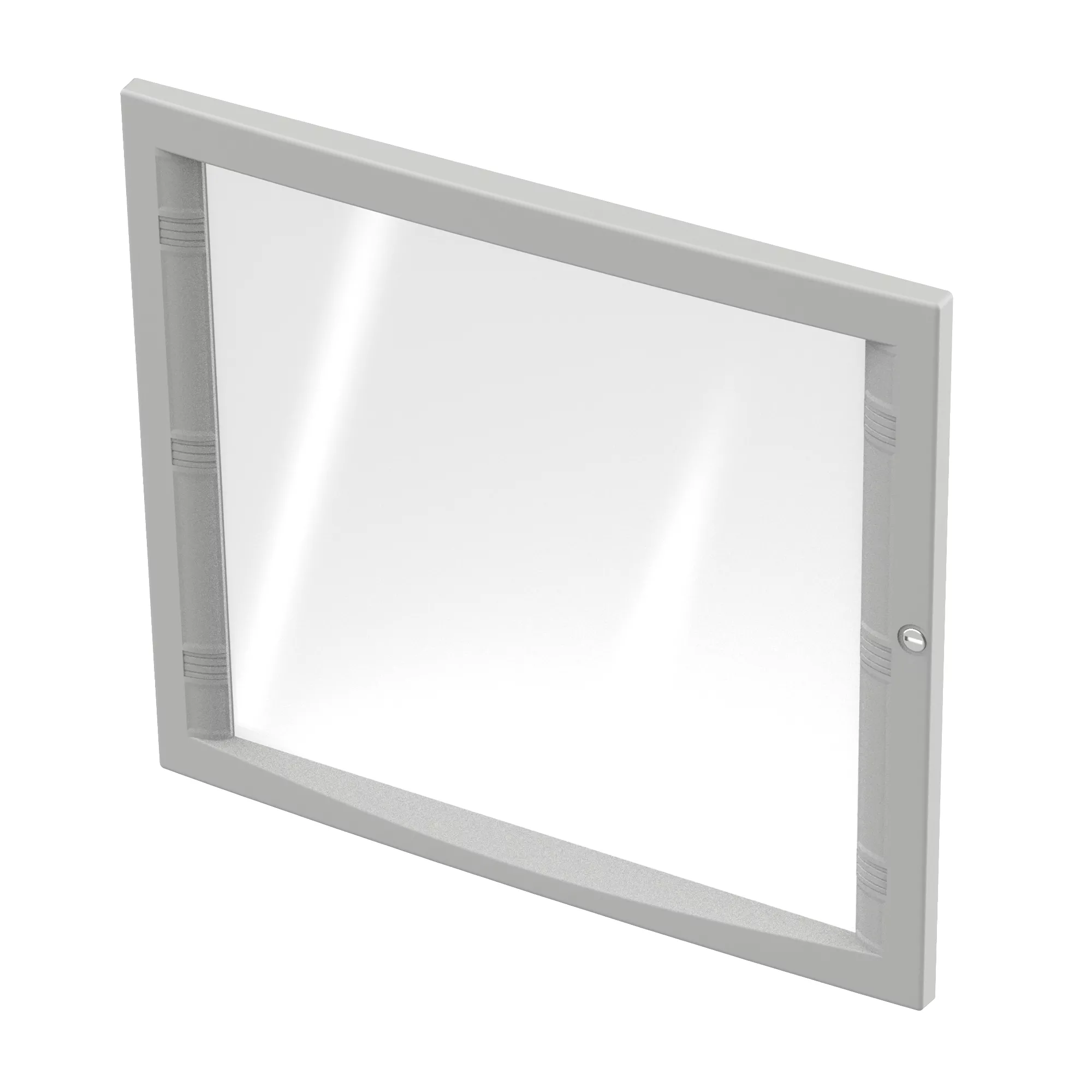

FRAMED, HINGED; FRAME SIZE 17.72 INCH W X 1.38 INCH D X 15.75 INCH H; WINDOW SIZE 366 MM W X 343 MM H; CLEAR 0.188 INCH POLYCARBONATE WINDOW MATERIAL; DIE CAST AESTHETIC ALUMINUM FRAME; ANSI 61 GRAY FRAME FINISH; INCLUSION MOUNTING SCREWS
Aesthetic die-cast aluminum frame
0.188-in. (5-mm) thick, clear polycarbonate window
Furnished window frame caps conceal mounting screws
Specifications
Brand Name
nVent Hoffman
Sub Brand
Concept
Item Name
Window Kit
Type
Hinged
Length
15.75 in
Width
17.72 in
Depth
1.380 cm
Material
Die Cast Aluminum Frame/Polycarbonate Window
Series
41610
Thickness
1.38 in
Color
ANSI 61 Gray
Finish
Textured
Enclosure Type
NEMA Type 4 and 12, IEC 60529, IP66
For Use With
Concept™ 400 x 450 mm Operator Interface Enclosure
Includes
(4) Mounting Screws, Latch Mount
Standards
RoHS Compliant, UL 508A, 508, File Number E61997: Type 12, CSA File Number LR42186: Type 12
Application
Controls and Drives
UPC
783510416102
