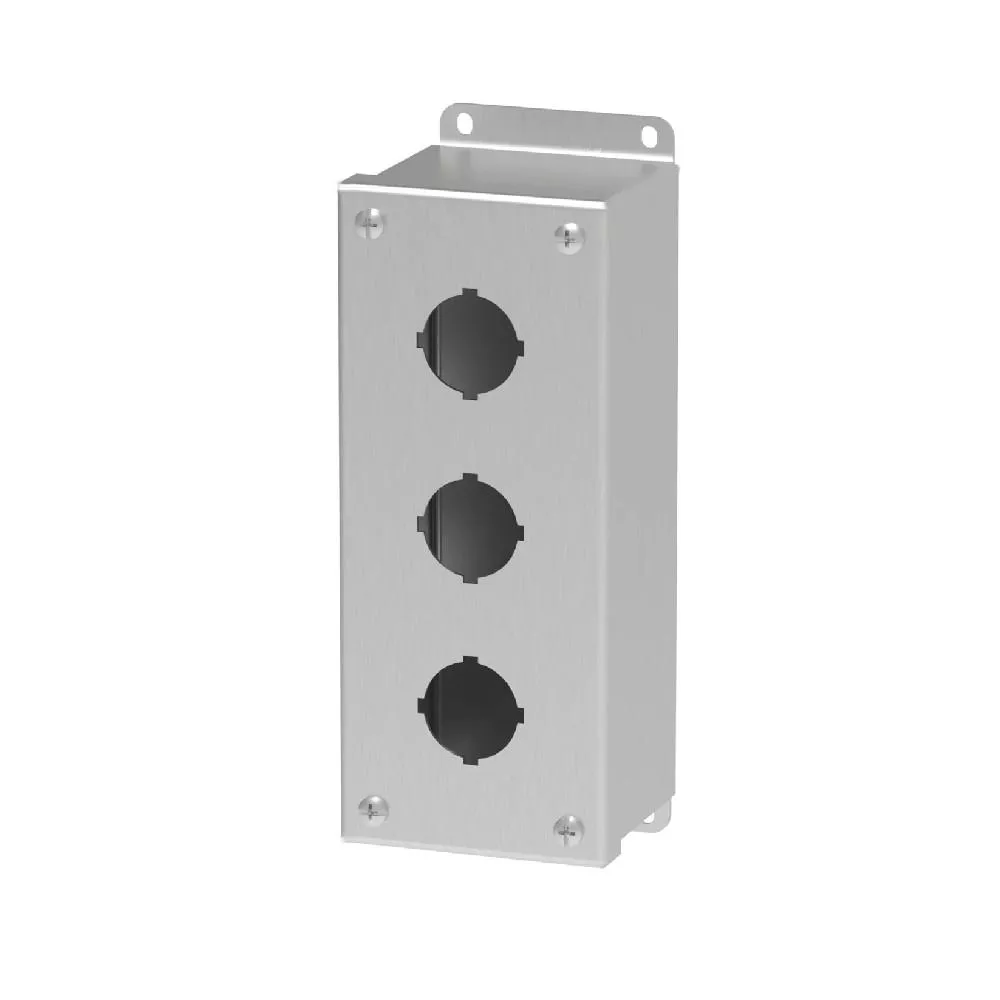

Pushbutton enclosure, Type 4X, 14 gauge type 304 stainless steel, Seams continuously welded and ground smooth, Captivated cover screws thread into sealed wells, Grounding nut in body of enclosure, Bonding provision on cover, Oil-resistant gasket, Enclosures provide protection against dirt, dust, oil and water.
Prepunched 30.5mm or 22.5mm holes
Seams continuously welded and ground smooth
Captivated cover screws thread into sealed wells
Bonding provision on door; grounding nut on body
4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
Oil-resistant gasket
Specifications
Brand Name
nVent Hoffman
Sub Brand
Hoffman
Item Name
Enclosure
Type
3 Holes
Width
83 mm
Depth
70 mm
Height
203 mm
Cover Type
Screw
Gauge
14
NEMA Rating
NEMA/EEMAC Type 4, 4X, 12, 13, IP66
Material
Stainless Steel
Finish
Brushed
Color
Stainless Steel
For Use With
30.5 mm or 22.5 mm Oil-Tight Pushbuttons, Switches and Pilot Lights
Standards
cUL Listed, UL 508A, UL File Number E61997, CSA C22.2 No 94, CSA File Number 42186, IEC 60529
Application
Provide Protection Against Dirt, Dust, Oil and Water
UPC
783510596309
