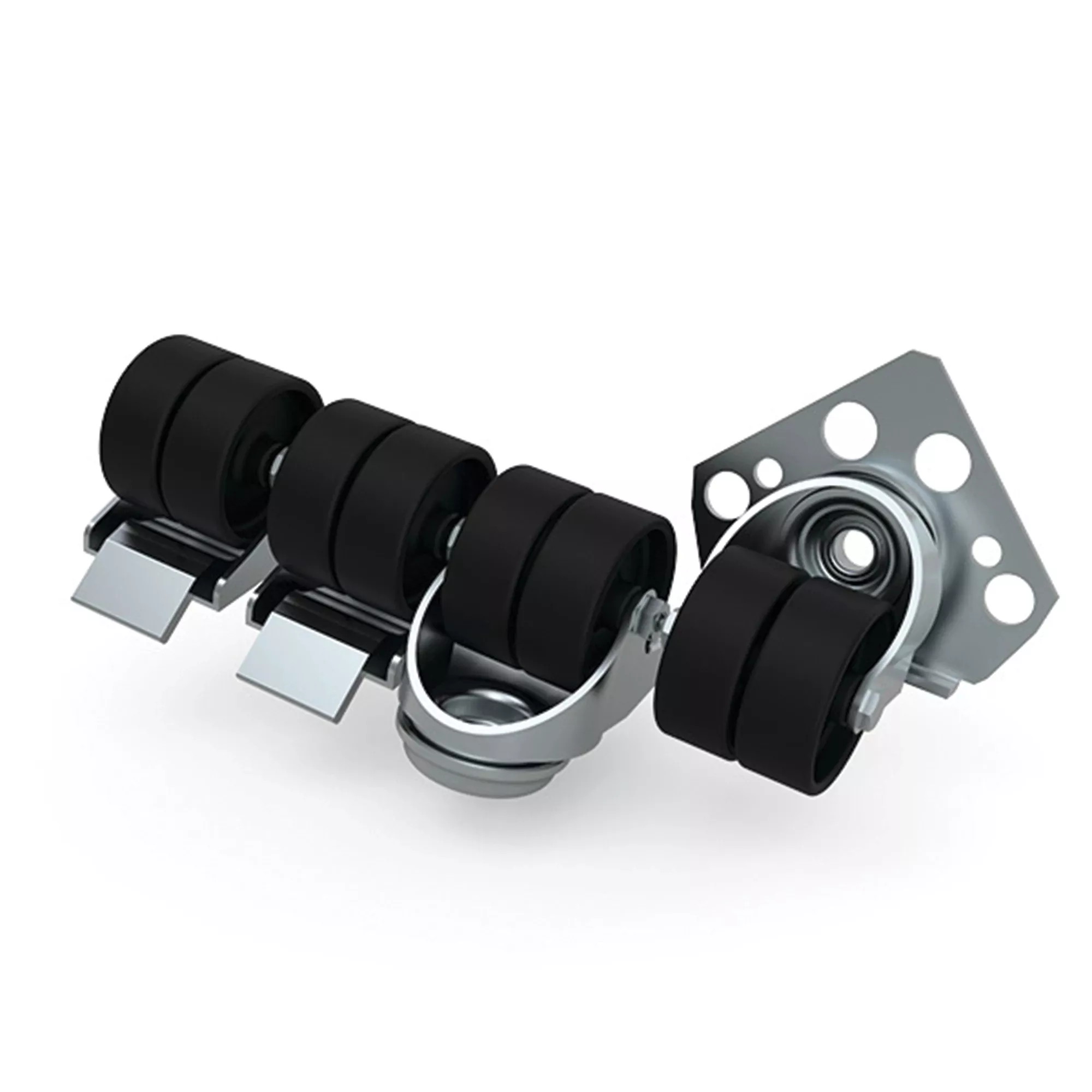

Casters can be used for easy transportation of an (equipped) enclosure. This Caster, LCR, LCR472 item measures 73x102x80mm, kit includes 4 casters all with brake.
Description: For easy transportation of an (equipped) enclosure. Can be mounted directly to the enclosure’s frame or underneath the plinths (PF/PV) with the provided mounting brackets. Raises the enclosure by 70 mm.
Maximum load: 2800 N (Moving) or 5600 N (Static) per kit.
Pack quantity: 4 pieces with mounting accessories.
Benefit: when casters are mounted, the fully equipped enclosure can be transported within the factory, which is normally required for specific applications, for example, for calibration machines
Comment: the casters increase the height of the enclosure by 70mm (2.76)
Maximum load: 2800 N (629 lb-f Moving) or 5600 N (1259 lb-f Static) per kit
Specifications
Brand Name
nVent Hoffman
Type
IEC Enclosure Accessories
Material
Steel
Application
Factory Automation and Process Control; Controls and Drives
UPC
783510484316
