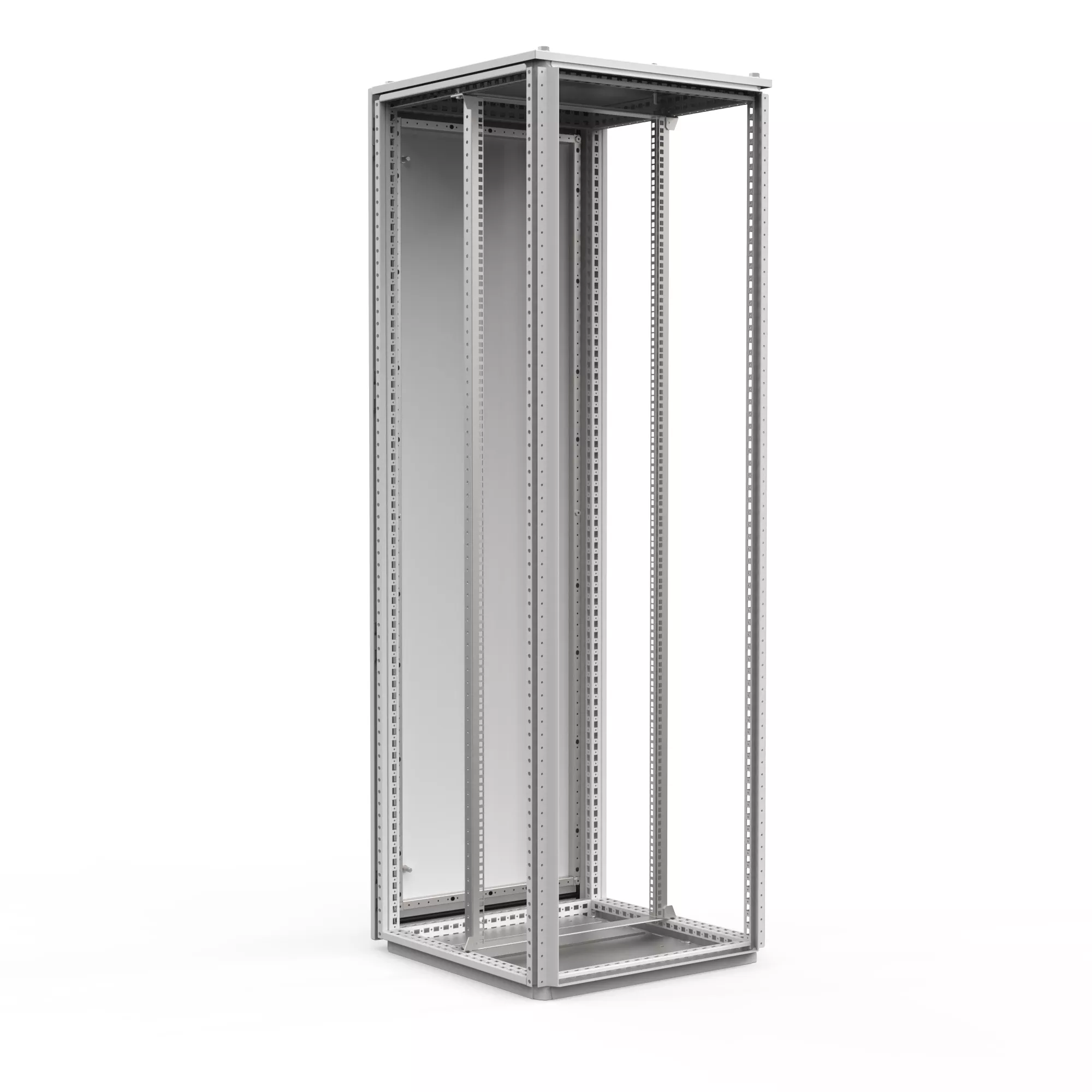

The mild steel combinable floor standing, MCI, is ideal for ICT applications, and requires little assembly time. This Mild Steel Ip Protected Ict Rack, MCI, MCI22066R5 item measures 2200x600x600mm has a material of Mild Steel color Light Gray, finish Powder Coated.
“Material: Frame: 1.5 mm steel plate. Door: 2 mm steel plate. Roof plate: 1.5 mm steel plate. Bottom plates: 1 mm galvanized steel. 19 profiles: 2 mm zinc plated steel.”
Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
Rear door: Mounted with hinges, allowing left or right hand opening. Including door frame with 25 mm hole pattern.
Side panels: Supplied as an accessory.
Roof panel: Removable.
Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
Bottom plates: Consists of three or four (D600) pieces.
“19 profiles: Provides front and side universal 19 hole pattern. Adjustable in depth by steps of 25 mm.”
Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
“Finish: Frame, rear door and roof plate: RAL 7035 structured powder coating. 19 profiles: zinc plated steel.”
Specifications
Brand Name
nVent Hoffman
Width
23.62 in
Depth
23.62 in
Height
24.25 in
Material
Steel
Finish
Powder Coat
Color
Gray
UPC
783510493615
Packages
