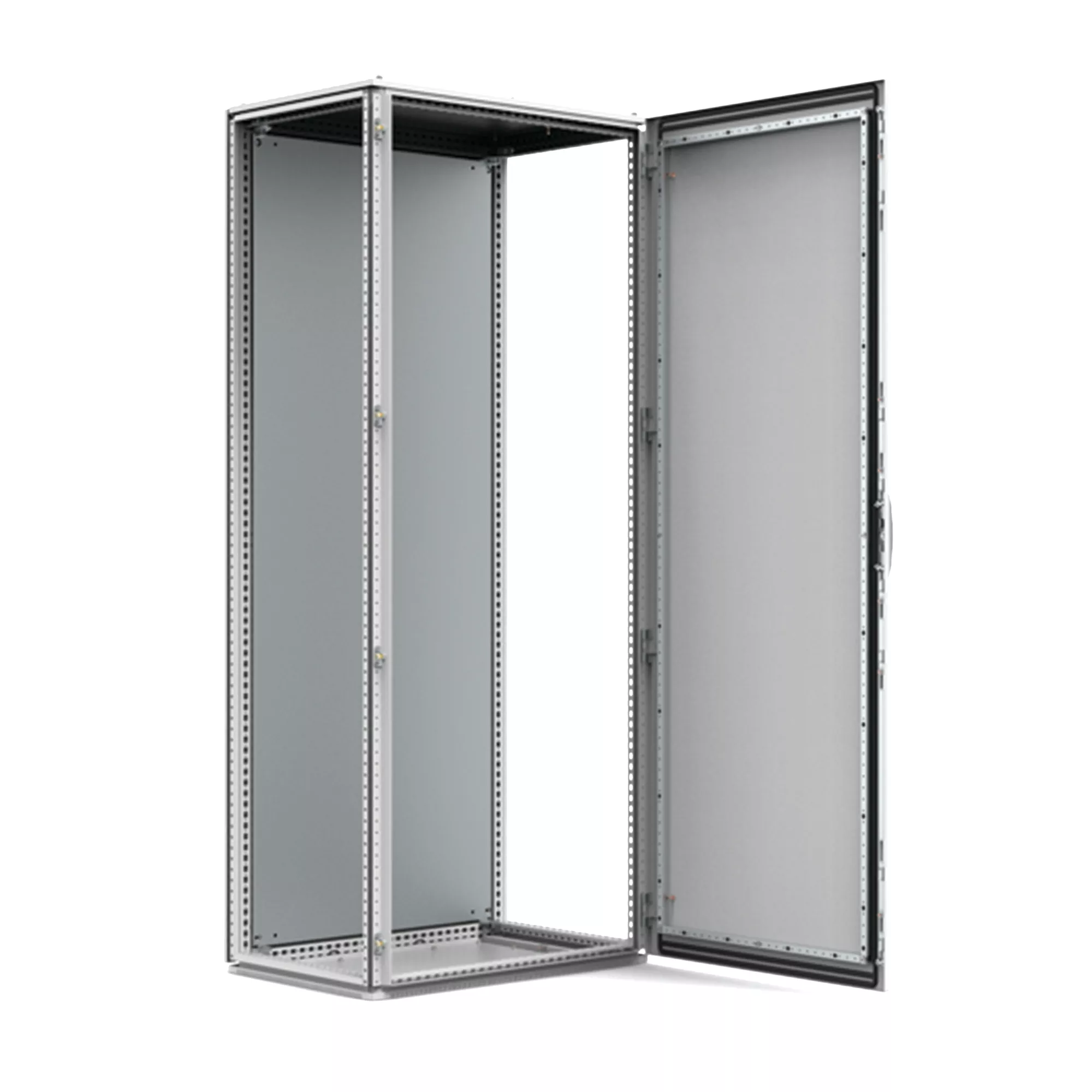

Modular, Single Door, MCS-HP maintains IP66/Type 4 rating and can be installed in severe environments. This Modular Single Door Mild Steel, MCS-HP, MCS20086HP item measures 2000x800x600mm with a material of Mild Steel color Light Gray.
Material: Frame: 1.5 mm painted steel. Door: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
Frame: Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660. Including integrated external hole pattern.
Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
Side panels: Supplied as an accessory.
Roof panel: Removable.
Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
Specifications
Brand Name
Hoffman
Type
Type 4 Mild Steel Freestanding Enclosure
Width
24.25 in
Depth
23.62 in
Height
78.74 in
NEMA Rating
NEMA Type 12NEMA Type 13
Material
Mild Steel
Finish
Powder Coated
Color
Light Gray
Application
Stationary Machinery and Equipment Outside Factory
UPC
783510495879
