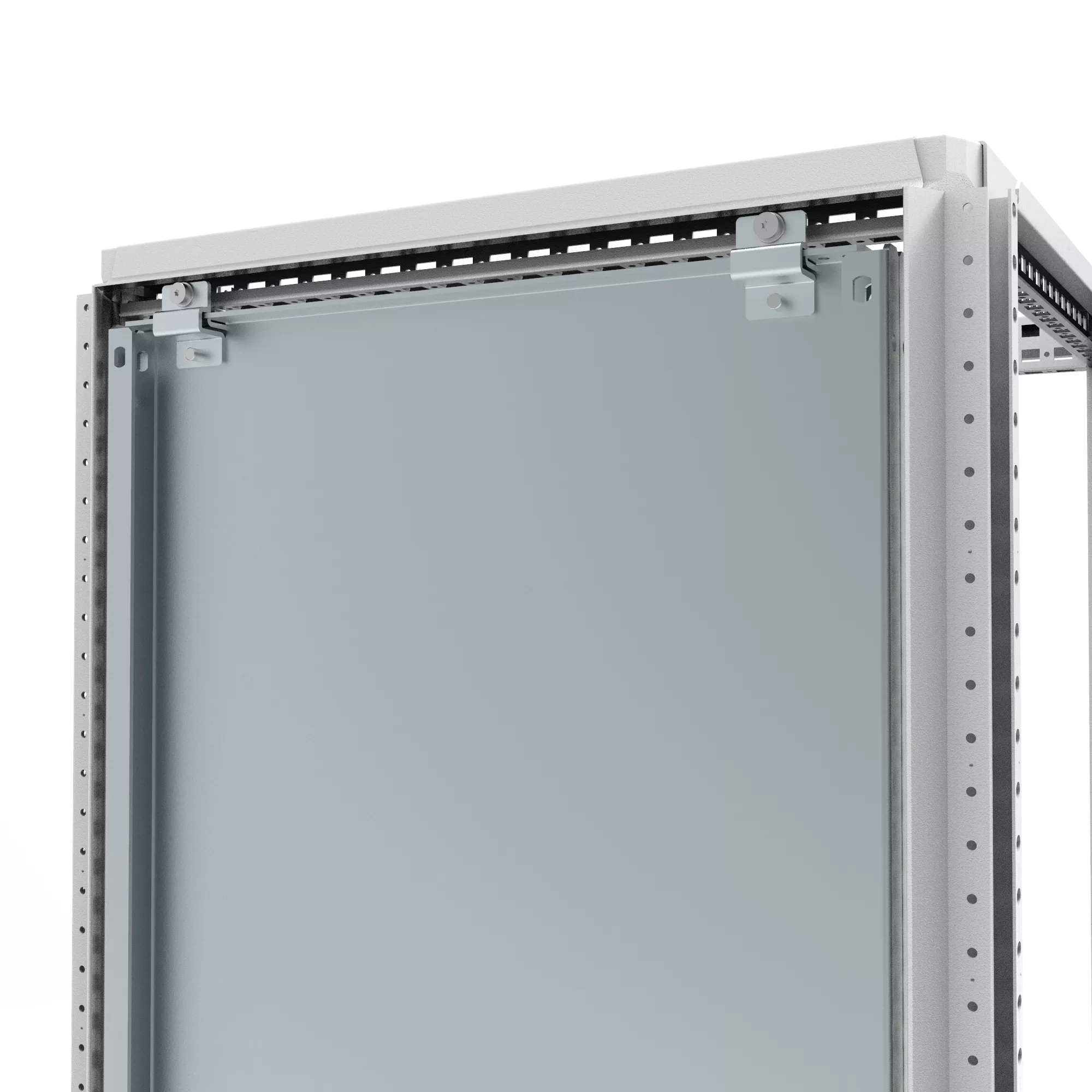

Mounting Plate Brackets For Rear Mounting, MPA-R provides plate mouning flush with enclosure frame. This Mounting Plate Brackets For Rear Mounting, MPA-R, MPA04R item measures 50x50x38mm with a material of Steel, finish Zinc Plated.
Description: To fix mounting plates to the enclosure from rear. The kit includes brackets for fixing the mounting plate flush with the enclosure frame or set back behind the enclosure frame, adding +20mm of useful depth for mounting components. These brac
Material: 3 mm zinc plated steel.
Pack quantity: 2 top brackets, 2 bottom brackets, 2 brackets for flushing the mounting plate with the frame and 2 brackets for setting the mounting plate back behind the frame with mounting accessories.
Benefit: the mounting plate can be positioned to support any configuration such as back-to-back mounting plate, or aligning the components with the inner door
Comment: these brackets should only be purchased if the mounting plate is purchased as an accessory for depth adjustment of a mounting plate that is delivered with an enclosure, select MPD
Specifications
Brand Name
Hoffman
Size
1.97 x 1.97 x 1.5 inch
Material
Mild Steel
Type
IEC Enclosure Accessories
Application
For Maestro, Maestro IR, Vive Maestro Wireless, Maestro Wireless, Caseta Wireless, Pico Wireless, Diva, Skylark Contour, Skylark, Lumea Controls
UPC
783510509583
