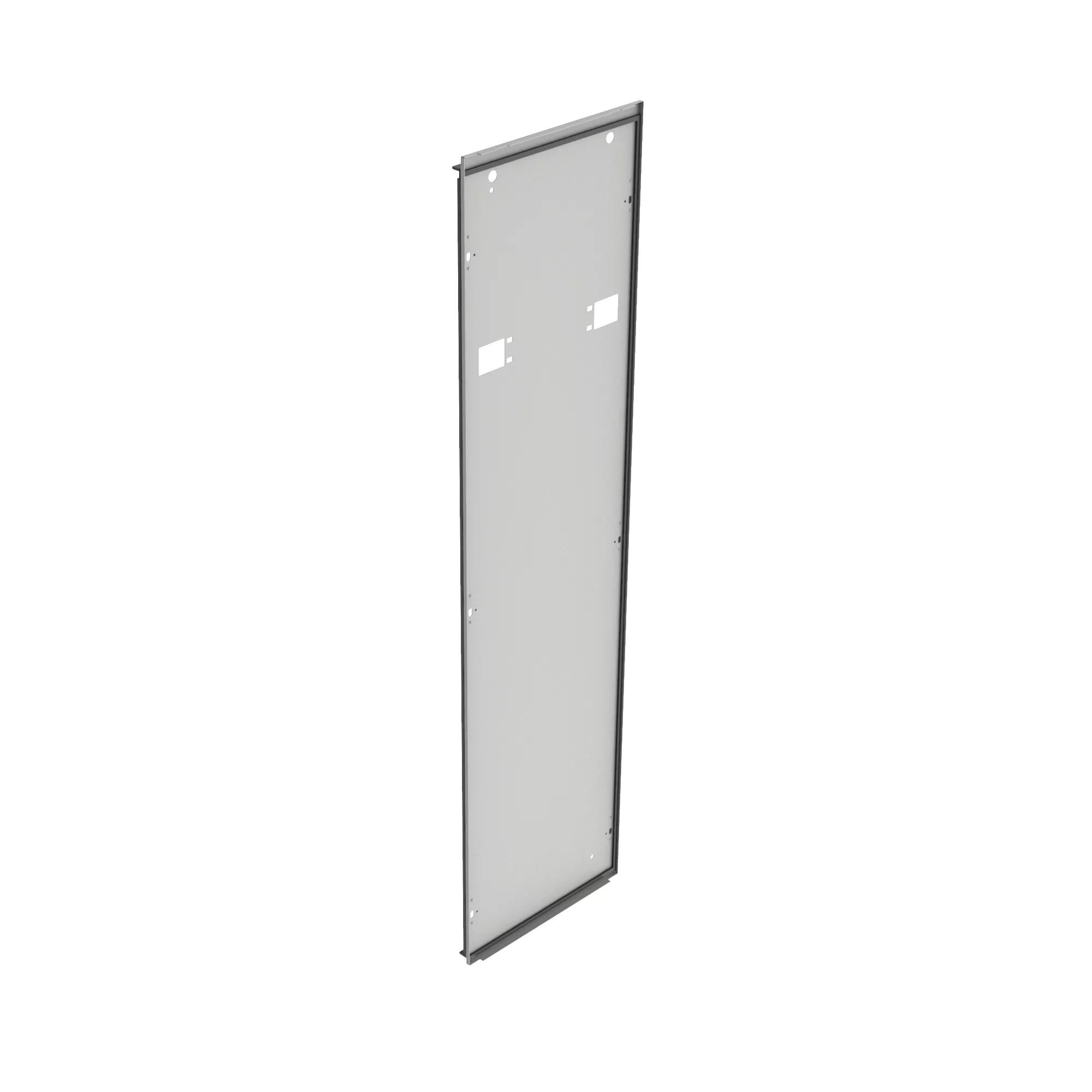

Similar in design and function to the standard Barrier Panel, the ProLine G2 Sequestr Barrier Panel is used to join enclosures, while at the same time segregating higher voltage/amperage components in the ProLine G2 Sequestr enclosure from the adjacent controls enclosure. The ProLine G2 Sequestr Barrier Panel incorporates a cutout for passage of the mechanical interlocking components.
16 gauge steel construction
RAL 7035 textured light-gray polyester powder paint finish
Cutouts for passage of mechanical interlocking components present, interlock components sold separately
Barrier panel serves as a joining kit between enclosures, no additional joining components are required
All mounting hardware is furnished with the Barrier Panel
Specifications
Brand Name
nVent Hoffman
Sub Brand
ProLine
Type
Enclosure Packages, Type 12
Height
1.88 in
Width
21.57 in
Material
Steel
Color
Gray RAL 7035
Finish
Powder Coat
Application
Controls and Drives; Power Distribution
UPC
783510368074
Packages
