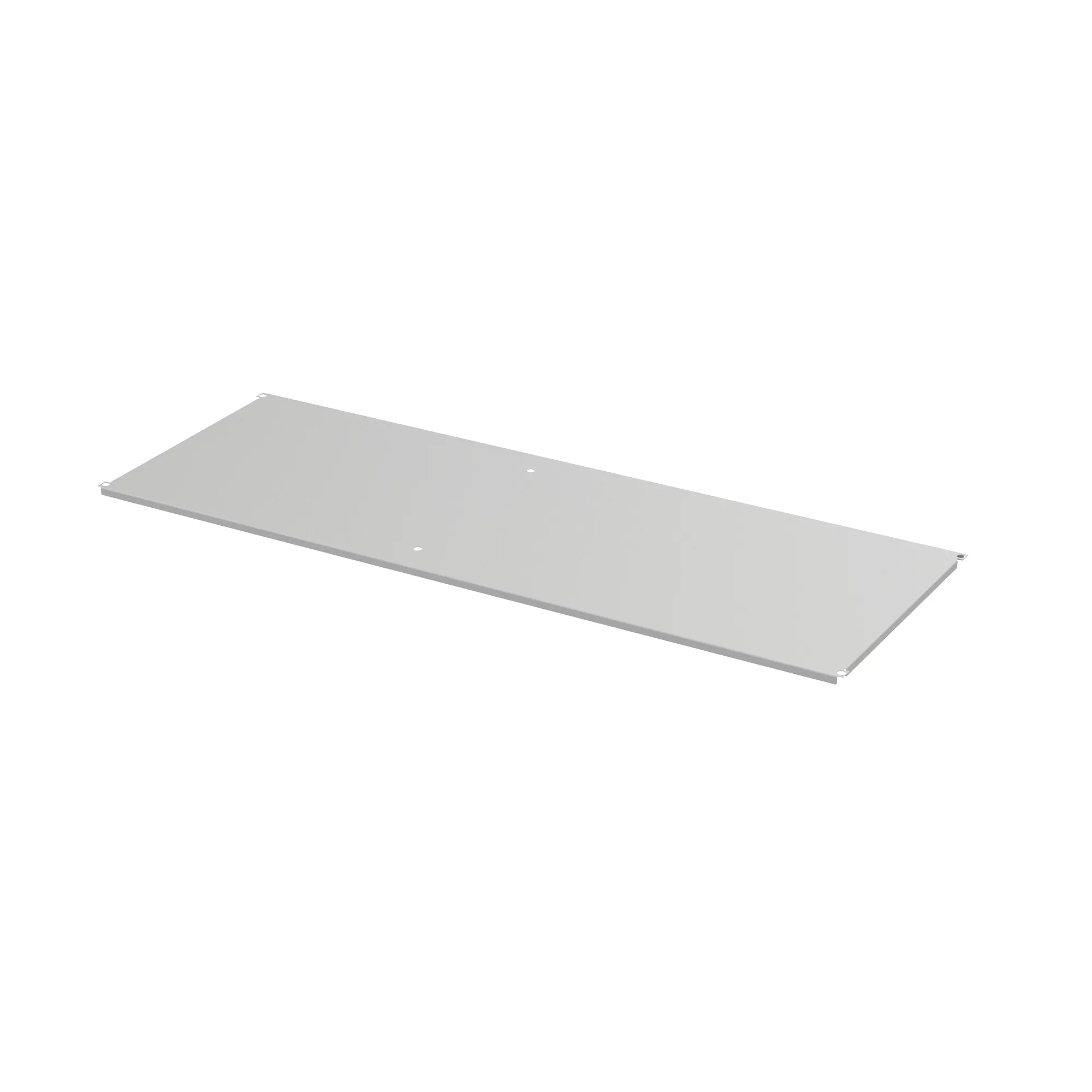

PROLINE G2 Disconnect Components are used with PROLINE G2 Disconnect Frames and Doors to configure a custom Disconnect Enclosure Solution for widths 1000 mm wide. These components are identical to the standard PROLINE G2 components (i.e. PROLINE G2 Solid Tops, Gland Plates, Mounting Subpanel) with the exception that the center support is offset 100mm (to accommodate the hinged mullion).
Solid Tops are finished with paint over plated surfaces
Solid Tops are gasketed and include ground studs
Bolts are included to hold the top in place (lifting eyes can be used instead of bolts)
Specifications
Brand Name
Hoffman
Type
Tops and Top Accessories
Length
27.00 in
Width
67.00 in
Material
Steel
Thickness
1.52 mm
Color
Gray
Finish
Powder Coat
Application
For Arc Flash Safety, Controls and Drives
UPC
783510329976
